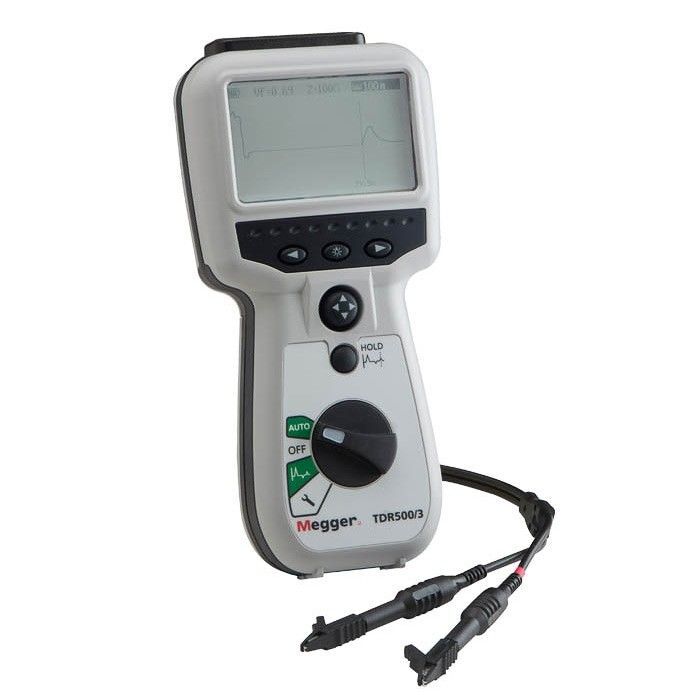

Megger TDR500/3 Time Domain Reflectometer

The TDR500/3 is used for precisely locating cable faults over a wide distance.

Handheld and compact for ease of use, the TDR500/3 is suitable across a range of 5km/15kft (depending on velocity factor selected and the type of cable). It has four selectable input impedance (25, 50, 75 and 100Ω) and a velocity factor between 0.2 and 0.99.

The TDR500/3 is one of the only handheld TDRs on the market with a trace HOLD function, allowing the trace to be frozen on the screen for ease of use.

Megger TDR500/3 Time Domain Reflectometer Key Features

• Simple to use - rotary dial and cursor keys
• Automatic setup for instant use
• Ultra fast pulse for near end fault identification
• IP54 rated
• Trace hold function
• Suitable for use on metallic cable pairs
• Backlit monochrome graphical LCD display with adjustable contrast
• Resolution to 0.1m
• For use on telecom TNV-3 circuits or 150 CAT IV power circuits
• Doesn't require a power blocking filter
• Display distance in metres or feet
• Powered by 5 x AA (LR6) batteries

What's Included?

• Megger TDR500/3 Time Domain Reflectometer
• Hard Carrying Case
• Miniature Clip Test Lead Set
• User Guide CD
