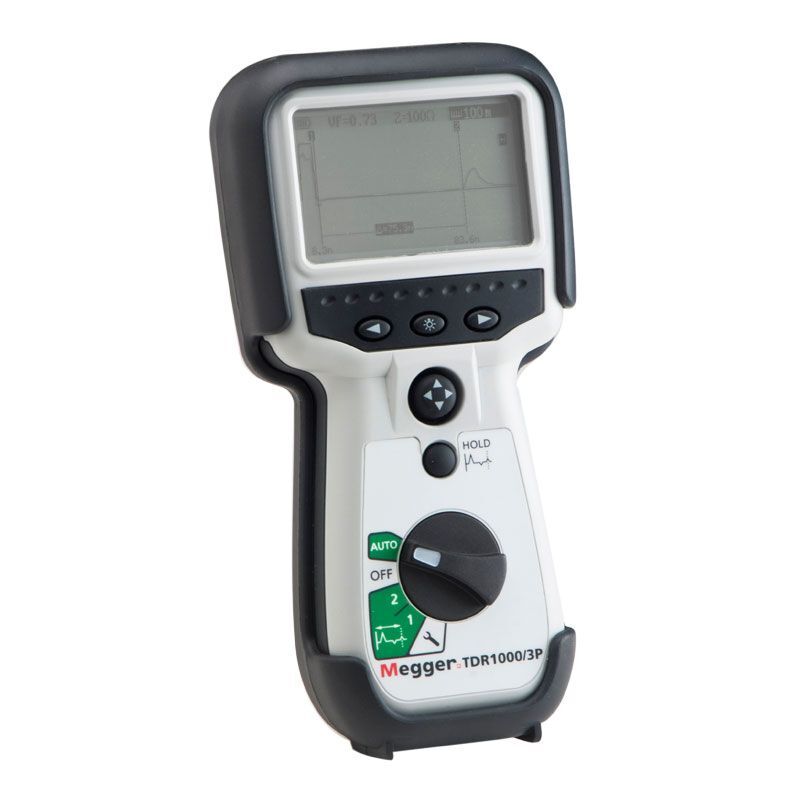

Megger TDR1000/3P Power Single Channel Fault Locator

Megger TDR1000/3P Power Single Channel Fault Locator

This portable, lightweight unit is used for quickly finding faults on metallic cabling up to 5000m in length (dependant upon velocity factor and the type of cabling).

This fault locator includes four output impedances of 25, 50, 75 and 100Ω and uses velocity factor between 0.2 and 0.99 to meet the various demands of cable testing. The TDR1000/3P also features an intuitive, easy-to-use interface with 4 way control switch for easily switching between different functions.

When carrying out TDR tracing this device speeds up testing by using its AUTO mode which automatically selects applicable parameters depending on the overall range required. It also comes with a live trace overlay which allows users to compare two traces at the same time and the devices' bright, graphical LCD screen can be used in both good and poor lighting conditions thanks to the inclusion of a bright backlight.

This cable locator uses ultra fast pulse technology to carry out near fault identification and is designed for use on metallic cable pairings. Distance can be displayed in either metres of feet depending on preference and this tester is IP54 safety rated.

Megger TDR1000/3P Single Channel Cable Fault Locator Key Features

• Easy to use with simple interface
• Backlit monochrome graphical LCD display
• Ultra fast pulse for near end fault identification
• Built in HOLD function for comparison work
• IP54 rated
• Designed for use on metallic cable pairings
• Adjustable display contrast
• Resolution to 0.1m
• Suitable for cables up to 5000m
• Can be used on telecom TNV-3 circuits or 150V CAT IV power circuits
• Doesn't require the use of power blocking filters
• Automatically selected output impedance
• Auto option
• Metre/feet display

Full List of Products Included

• Megger TDR1000/3P Single Channel Cable Fault Locator
• Hard Carry Case
• Fused Test Lead Set
• User Guide CD
