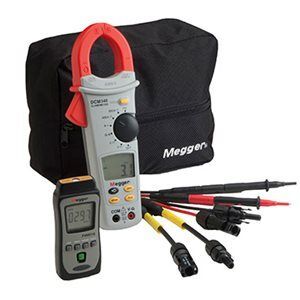

Megger PVK330 Photovoltaic Kit

Megger PVK330 Photovoltaic Kit

• PVM210 irradiance meter
• DCM340 600 A AC/DC clampmeter
• PV solar connectors to 4 mm standard plug test leads
• PV adaptor test leads
• PV kit storage pouch

The PVK330 photovoltaic kit offers additional functionality for the he Megger MFT1730 and MFT1835 multifunction testers using three key components:

1. PVM210 irradiance meter
2. DCM340 600 A AC/DC clamp meter
3. Specialist solar/photovoltaic (PV) test leads

To provide easy storage of the PV kit, a zipped pouch is also included.

The PVM210 is a pocket size instrument that has both solar detector and meter combined into one unit that permits single-handed use, making it ideal for working at heights and on sloping roofs.

The DCM340 600 A AC/DC clampmeter gives you the option of testing the current within each ‘string’ on a larger solar array without disconnecting the cables. Additional functions of this unit include resistance, frequency and a hold feature to enable easy measurements.

In addition to the test leads supplied with the DCM340, two pairs of specialist solar test leads are included in the PVK330. The first pair of leads are comprised of 1.3 m test leads terminated with standard 4 mm plugs, while the other ends are terminated with the typical PV type solar panel connector. For older style panels, a pair of conversion adaptors are provided.
