Megger  |  SKU: MIT330-EN

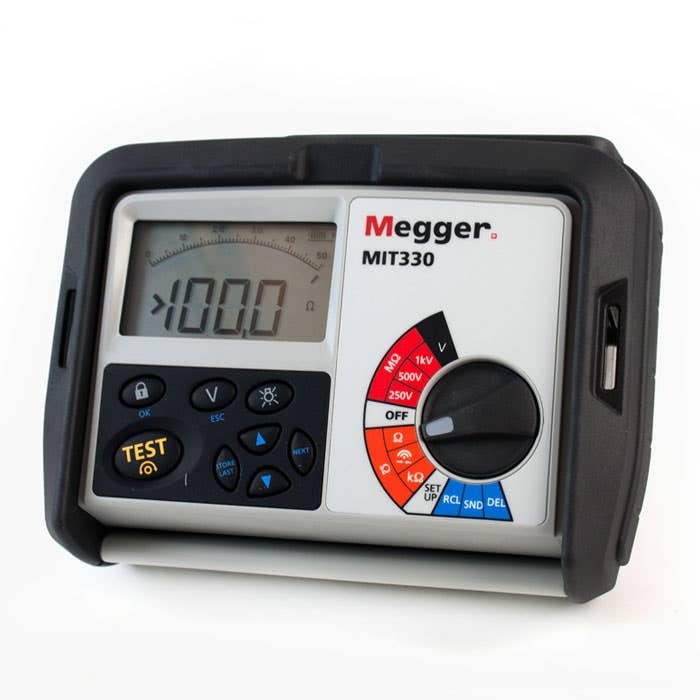

Megger MIT330 Insulation and Continuity Tester

£524.00

Inc VAT: £628.80

Shipping calculated at checkout.

Product Documents

Data sheet - MIT300

Delivery and Shipping

- Standard Shipping: Delivery typically takes 2-4 business days.

- Continue to checkout for accurate shipping rates

Share with your team, or Save page as a bookmark

Megger MIT330 Insulation and Continuity Tester


The most advanced overall model in Megger's MIT330 series, this comprhensive tester includes everything you'll need for testing both insulation and continuity.

Insulation testing can be performed at selectable test voltages of 250, 500 and 1000V with a built-in insulation limit alarm from 0.01MΩ to 999MΩ. Continuity testing can be performed across a wide range with an adjustable buzzer (and the option to disable) and dedicated voltage and resitance measurement functions are also included.

Megger's MIT330 is the only model in the MIT300 series which comes with internal memory and download to PC. This makes it significantly easier to manage and view back measurement data without the hassle of jotting everything down in a pad.

A number of other additional features are also included such as a built-in voltmeter, backlit display, locking test button and a protective cover for the unit when not in use.


Megger MIT330 Insulation and Continuity Tester Key Features


  • Insulation test voltages of 250, 500 and 1000V
  • Insulation limit alarm
  • Continuity testing with adjustable buzzer
  • Voltage measurements to 600V (AC/DC)
  • Resistance measurements from 10Ω to 1MΩ
  • Default voltmeter
  • Backlit display with adjustable intensity
  • Locking test button
  • Auto shutdown when left idle
  • Switched test probe - activate the tester using the probe
  • IP54 weatherproofing
  • Compatible with rechargeable batteries
  • 1000 record memory with download


What's Included?


  • Megger MIT330 Insulation and Continuity Tester
  • Test Lead Set with Croc Clips
  • SP4F Switched Probe


Megger MIT300 Series Technical Specifications


Nominal Test Voltage MIT310, 310A, 320, 330: 1000V, 500V, 250V (DC)
MIT300: 500V, 250V (DC)
Measuring Range 10kΩ to 999MΩ on all ranges
Short Circuit Current 1.5mA nominal
Test Current on Load 1mA at min. pass values of insulation (as specified in BS7671, HD 384 and IEC 364)
Accuracy (at 20°C) MIT300, 310, 320, 330: ±3% ± 2 digits up to 10MΩ, ±5% up to 100MΩ, ±30% up to full scale
MIT310A: <2.5% of scale length (or 30% of reading 200kΩ to 10MΩ)
Continuity
Measuring Range 0.01Ω to 99.9Ω (0-50Ω on analogue scale)
Open Circuit Voltage 5V ± 1V
Short Circuit Current MIT300, 310, 320, 330: 205mA + 10mA -5mA
MIT310A: 200-250mA
Continuity Accuracy MIT300, 310, 320, 330: ±3% ± 2 digits
MIT310A: ±2.5% of scale length (or 30% of reading 0.2 to 2kΩ)
Measuring Range 0-2/20/200/2kΩ
Open Circuit Voltage 1.5V ± 0.5V
Zero Offset Adjust MIT300, 310, 320, 330: 0 - 9Ω
MIT310A: 0 to 0.5Ω
Continuity Buzzer MIT300, 310: operates at <5Ω
MIT 320, 330: adjustable from 1Ω to 20Ω
MIT310A: operates at <5Ω
MIT300, 310, 320, 330: response time <20ms
MIT310: response time <100ms
Resistance Range (MIT320/330)
Measuring Range 10Ω to 1MΩ
Open Circuit Voltage 5V
Short Circuit Current 1.5mA
Accuracy (at 20°C) ±5 ± 2 digits up to 100kΩ
Measuring Range (MIT310A) 0 to 2kΩ (refer to continuity)
Voltage Range
Measuring Range 0 to 600V AC (50/60Hz) or DC
Accuracy (at 20°C) MIT310, 320, 330: DC or AC (50/60Hz): ±1% ± 2 digits
MIT310A: ±2.5% of scale length for 50/60Hz
Temperature Coefficient <0.1°C per °C on all ranges
Default Voltmeter
MIT310, 320, 330 >25V AC or DC is applied display will operate as a voltmeter
MIT300 Beeps and flashes V on the display
MIT310A All modes including OFF
Test Inhibit If more than 50V is detected testing will be inhibited
