Megger MIT320 Insulation and Continuity Tester
Inc VAT: £607.20
Megger MIT320 Insulation and Continuity Tester - No Calibration Certificate Required is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Documents
Product Documents
Delivery and Shipping
Delivery and Shipping
- Standard Shipping: Delivery typically takes 2-4 business days.
- Continue to checkout for accurate shipping rates

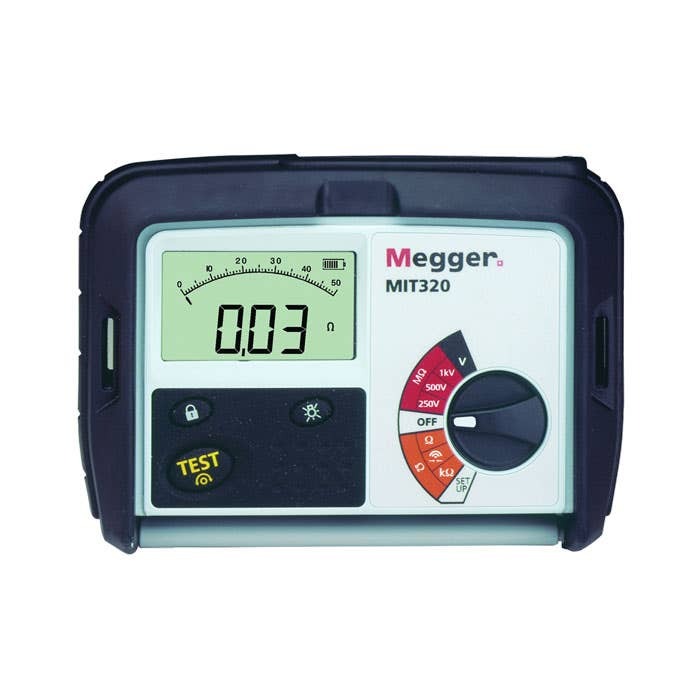

Megger MIT320 Insulation and Continuity Tester
The Megger MIT320 is the second-highest specification model available in Megger's MIT300 series and is the upgraded version of the MIT300, MIT310 and MIT310.
A powerful, handheld and easy to use insulation and continuity tester, the Megger MIT320 is made tough for use on site, with rubber armoured casing and rigid display cover which locks down to protect the tester when not in use.
Megger's MIT320 can perform insulation tests with test voltages of 250, 500 and 1000V with maximum testing range of up to 999MΩ. Testing procedures can be activated directly from the tester, or alternatively you can use the switched probe supplied with the MIT320 to activate the tests remotely. For added convenience, continuity testing will automatically activate when connected to the circuit.
The main exclusive additions which are added to this unit compared to other MIT300 units include an insulation limit alarm (from 0.01MΩ to 999MΩ), adjustable continuity buzzer (1 to 20Ω) with the ability to disable and the ability to carry out resistance measurements from 10Ω to 1MΩ.
Megger's MIT300 series is built with safety in mind - this insulation tester includes a number of protective safety measures including a Safety Interlock which will prevent unsafe test lead connection, safe contact detectors which will protect the tester even if the MIT is connected to live circuits when on continuity setting and even a safety lockout which will prevent the test from operating if voltage is above 50V.
Megger MIT320 Insulation and Continuity Tester Key Features
- Insulation testing at 250, 500 and 1000V with test range of up to 999MΩ
- Insulation limit alarm with range from 0.01MΩ to 999MΩ
- Continuity testing to 100Ω with buzzer (adjustable from 1 to 20Ω - can be disabled)
- Lead null to 9Ω
- Voltage measurements to 600V (AC/DC)
- Resistance measurements from 10Ω to 1MΩ
- Backlit LCD display for use in poor lighting conditions
- Locking test button for continuous testing
- Automatic power off
- Switched test probe allows tests to be remotely activated without actually touching the meter
- IP54 weatherproof design
- Suitable for use with rechargeable batteries
- Rigid display cover folds over the unit to protect it during transportation
- Colour-coded ranges make it easier to select the test you want
- Hangs comfortably around the neck for hands-free use
- Automatic continuity test activattion when connected to a circuit
- Safety interlock prevents unsafe test lead connection
- Safety lockout prevents the test from operating if voltages above 50V are detected
- Meets and exceeds the standards of the UK/International Wiring regulations including BS7671, VDE 0413 Parts 1 and 4, HD 384, IEC 364, NFC15-100, NEN3140, ES59005 and EN 61557
- Includes 3 year warranty from Megger
What's Included?
- Megger MIT320 Insulation and Continuity Tester
- Test Leads Set with Crocodile Clips (1002-001)
- SP4F Switched Probe (6220-809)
Optional Accessories
- 1002-015 Fused Test Lead Set
Megger MIT300 Series Differences
Model | MIT300 | MIT310 | MIT310A Analogue | MIT320 | MIT330 |
---|---|---|---|---|---|
Insulation Testing | |||||
250V | √ | √ | √ | √ | √ |
500V | √ | √ | √ | √ | √ |
1000V | - | √ | √ | √ | √ |
Test Range | 999MΩ | 999MΩ | 999MΩ | 999MΩ | 999MΩ |
Insulation Limit Alarm (0.01MΩ to 999MΩ) | - | - | - | √ | √ |
Continuity Testing | |||||
Continuity to 100Ω | √ | √ | √ | √ | √ |
Continuity Buzzer | √ | √ | √ | √ | √ |
Lead Null to 9Ω | √ | √ | 0.5Ω | √ | √ |
Adjustable Buzzer (1 to 20Ω) | - | - | - | √ | √ |
Audible Buzzer Disable | - | - | - | √ | √ |
Voltage Measurement | |||||
Volts AC/DC | - | 600V | 600V | 600V | 600V |
Resistance Measurement | |||||
10Ω to 1MΩ Range | - | - | - | √ | √ |
Features | |||||
Voltage Warning | √ | - | - | - | - |
Default Voltmeter | - | √ | √ | √ | √ |
Backlit Display | - | - | - | √ | √ |
Backlit Selector Ranges | - | - | - | √ | √ |
Locking Test Button | √ | √ | √ | √ | √ |
Auto Powerdown | √ | √ | - | √ | √ |
Switched Test Probe | - | - | - | √ | √ |
IP54 Weatherproof | √ | √ | √ | √ | √ |
Accepts Rechargeable Batteries | √ | √ | √ | √ | √ |
1000 Test Result Storage | - | - | - | - | √ |
Downloading | - | - | - | - | √ |
Megger MIT300 Series Technical Specifications
Nominal Test Voltage | MIT310, 310A, 320, 330: 1000V, 500V, 250V (DC) MIT300: 500V, 250V (DC) |
Measuring Range | 10kΩ to 999MΩ on all ranges |
Short Circuit Current | 1.5mA nominal |
Test Current on Load | 1mA at min. pass values of insulation (as specified in BS7671, HD 384 and IEC 364) |
Accuracy (at 20°C) | MIT300, 310, 320, 330: ±3% ± 2 digits up to 10MΩ, ±5% up to 100MΩ, ±30% up to full scale MIT310A: <2.5% of scale length (or 30% of reading 200kΩ to 10MΩ) |
Continuity | |
Measuring Range | 0.01Ω to 99.9Ω (0-50Ω on analogue scale) |
Open Circuit Voltage | 5V ± 1V |
Short Circuit Current | MIT300, 310, 320, 330: 205mA + 10mA -5mA MIT310A: 200-250mA |
Continuity Accuracy | MIT300, 310, 320, 330: ±3% ± 2 digits MIT310A: ±2.5% of scale length (or 30% of reading 0.2 to 2kΩ) |
Measuring Range | 0-2/20/200/2kΩ |
Open Circuit Voltage | 1.5V ± 0.5V |
Zero Offset Adjust | MIT300, 310, 320, 330: 0 - 9Ω MIT310A: 0 to 0.5Ω |
Continuity Buzzer | MIT300, 310: operates at <5Ω MIT 320, 330: adjustable from 1Ω to 20Ω MIT310A: operates at <5Ω MIT300, 310, 320, 330: response time <20ms MIT310: response time <100ms |
Resistance Range (MIT320/330) | |
Measuring Range | 10Ω to 1MΩ |
Open Circuit Voltage | 5V |
Short Circuit Current | 1.5mA |
Accuracy (at 20°C) | ±5 ± 2 digits up to 100kΩ |
Measuring Range (MIT310A) | 0 to 2kΩ (refer to continuity) |
Voltage Range | |
Measuring Range | 0 to 600V AC (50/60Hz) or DC |
Accuracy (at 20°C) | MIT310, 320, 330: DC or AC (50/60Hz): ±1% ± 2 digits MIT310A: ±2.5% of scale length for 50/60Hz |
Temperature Coefficient | <0.1°C per °C on all ranges |
Default Voltmeter | |
MIT310, 320, 330 | >25V AC or DC is applied display will operate as a voltmeter |
MIT300 | Beeps and flashes V on the display |
MIT310A | All modes including OFF |
Test Inhibit | If more than 50V is detected testing will be inhibited |
