Martindale VT7 Single Pole Voltage Indicator
Inc VAT: £25.50
Martindale VT7 Single Pole Voltage Indicator
- 50V-600V AC
- Bright LED indication
- Audible indication
- Detects live panel casings
- Optimised for use when wearing PPE gloves
- Integrated self test function
Description
A single pole contact voltage indicator which detects AC voltages of 50V-600V with audible and bright LED indication.
This ergonomically designed voltage tester has a self-test function and is IP54 rated, for indoor and outdoor use. The tester is of durable construction making it suitable for both industrial and domestic applications.
Uniquely, the VT7 can be used when wearing protective gloves and gauntlets ensuring safe working practices can be adhered to at all times.

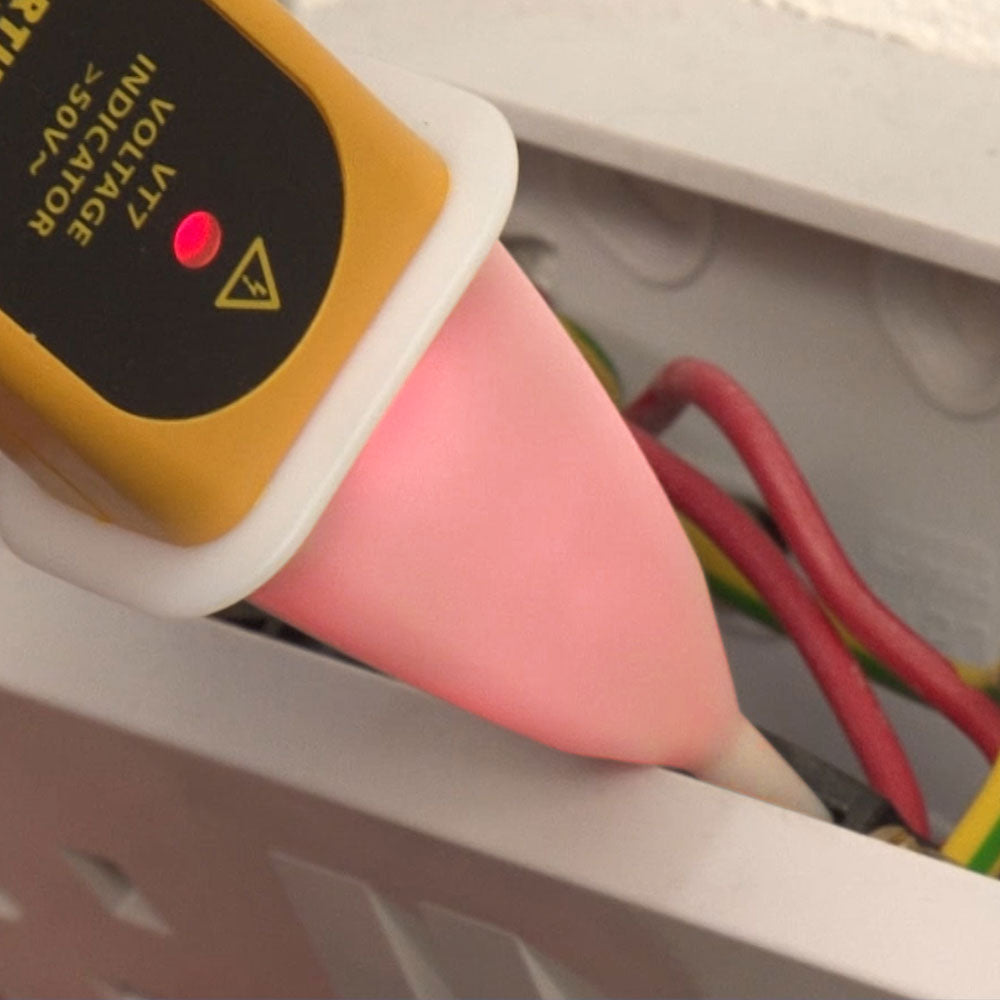

The probe is GS38 compliant and is ideal for detecting live panel casings.
The external tip enables easy access in confined spaces.
Specifications
| Audible and visual indication | |
| Voltage range | 50V-600V AC RMS |
| Frequency range | 50-60Hz |
| Test current | <5μA |
| Environmental Temperature | Operating & Storage:-10°C to 55°C |
| Humidity | Operating & Storage: ≤85% RH |
| Altitude | up to 2000m |
| Supply | 9V, PP3 alkaline battery (IEC 6LR61, NEDA 1604A) |
| Current consumption | 34mA max |
| Complies with | BS EN 61010-1
BS EN 61326-1 |
| IP rating | IP54 (Water resistant) |
| Weight | 120g approx. (with batteries) |
| Dimensions | 236 x 44 x 33mm |
| Includes | 9V PP3 battery and manual |
