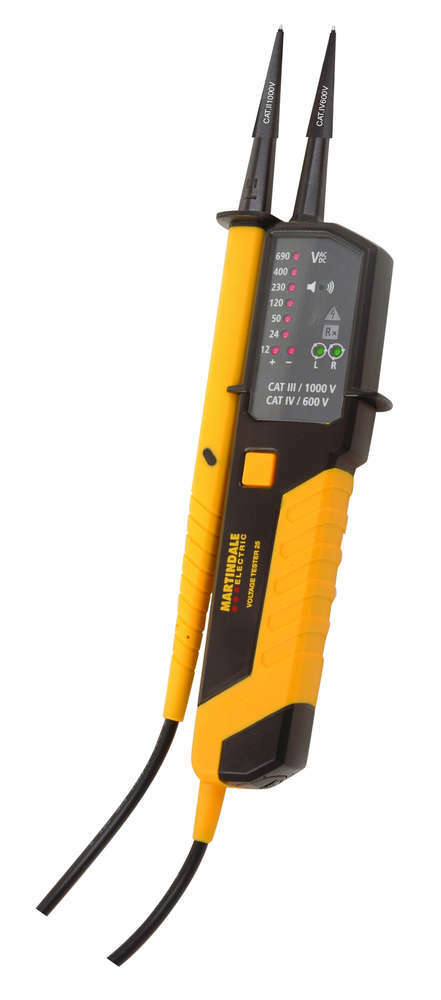

Martindale VT25 Voltage Indicator

Martindale VT25 Voltage Indicator

• 12 – 690V AC/DC
• Single pole phase test 90-690V
• Phase rotation test 100-690V
• Continuity – optical and acoustic indication
• Auto power off
• White LED torch light

Description

The Martindale VT25 is a tough, compact two pole tester for measuring AC/DC voltages from 12V to 690V. Additional capabilities include continuity and phase rotation testing plus single pole voltage detection.

The AC/DC voltage detection, continuity and phase rotation functions all have bright LED indication. Auto power-off ensures a long battery lifetime.
The voltage indicator conforms to all the latest safety standards and includes removable probe caps for GS38 compliance. Additional safety features include a 1.2m double insulated cable with a black outer and contrasting inner core to give a visual warning of any damage.

A built-in white LED torch makes it easy to use in low light environments.

Key features:

• AC/DC LED voltage indication 12-690V
• Continuity – LED & buzzer
• Single pole phase test 90-690V
• Phase rotation test 100-690V
• White LED torch light
• BS EN61243-3 & GS38 compliance

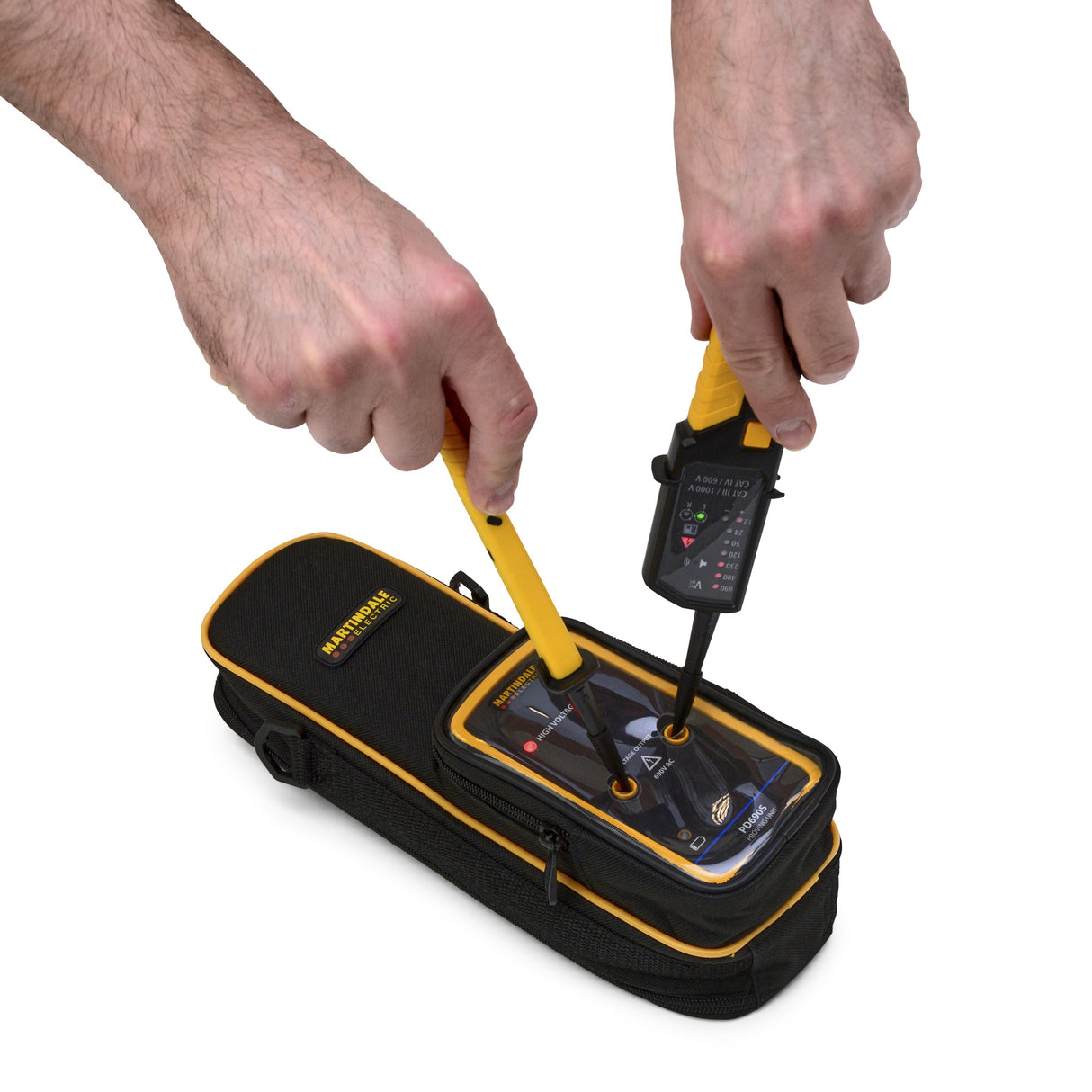

Available accessories include a soft carry case for just the tester, a matched proving unit and a combination carry case for both. The TC70 carry case enables the VT25 to be proved without having to unpack the PD690 and ensures the tester and proving unit are always to hand, making compliance with Electricity at Work Regulations straight forward.

The VT25, PD690 and TC70 carry case are available in a complete kit, the VT25PD.

Specifications
