Martindale VIPDLOK138 Voltage Indicator, Proving Device & Lock Out Kit

Martindale VIPDLOK138 Voltage Indicator, Proving Device & Lock Out Kit

Complete safe isolation solution, safety voltage indicator, matching proving device with mcb lock out kit for installations up to 600V.

Description

The complete solution for safe isolation, the Martindale VIPDLOK138 Lock Out Kit contains the VI13800 voltage indicator, PD440 proving device, along with a complete lock out kit, supplied in soft carry cases. The kit simplifies compliance with Health & Safety recommendations for safe working practices when maintaining or installing electrical plant and equipment.

Nothing is more dangerous than trusting a defective voltage indicator to test for a dead circuit. Safe electrical work requires the use of a voltage indicator that has been proved with a proving unit before and after use.

The VI13800 voltage indicator and matching PD440V proving unit are supplied in the TC69 combination carry cases to ensure that the proving device is always at hand and provide the simplest solution for implementing safe isolation practices on-site in accordance the Electricity at Work Regulations. For convenience and to save time, the proving unit can be used without having to remove it from the case.

The comprehensive lock out kit is compatible with all distribution boards. Spare and replacement individual lock off pieces are also available to order separately.

The kit comprises of 7 different locking devices for simple fitting to MCBs, RCBOs and fuse holders. There is a plastic body padlock with a 6mm hardened steel shackle for securing the locking devices and a steel safety hasp which allows multiple padlocks to be used. Multi-lock hasps ensure a circuit cannot be re-energised until each operator has finished work and removed their own padlock.

The kit is completed with 5 warning tags, a marker pen and a durable case with space for storing additional accessories.

Specifications

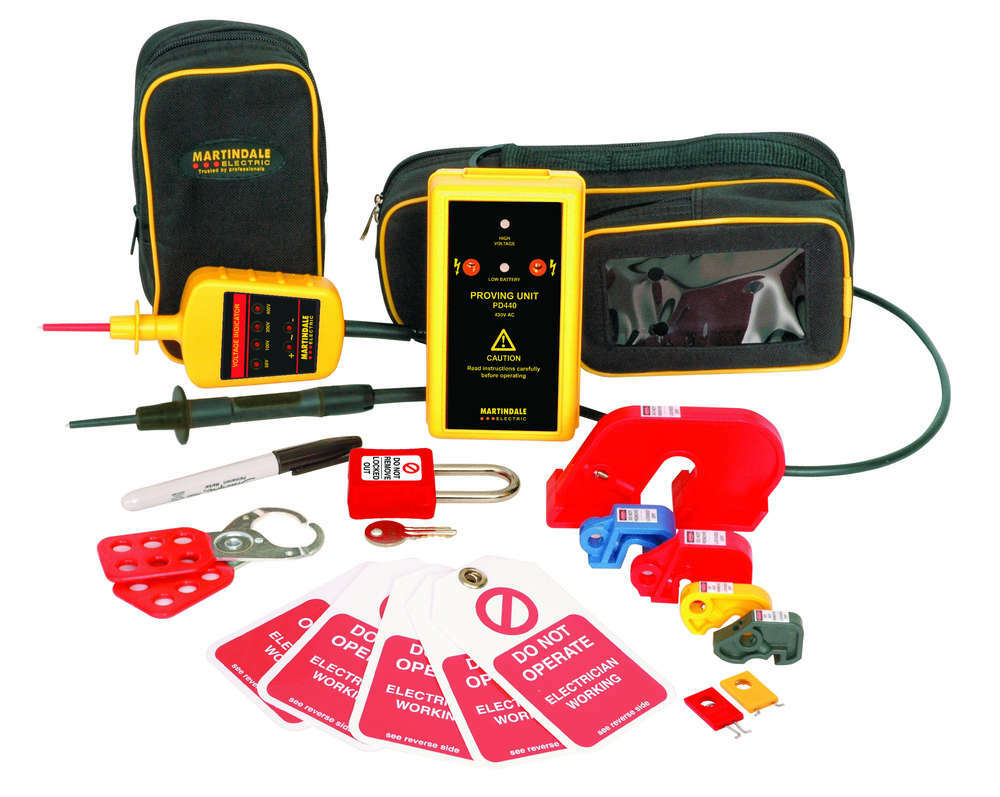

The full 15 piece kit includes:

PD440 Proving device

VI13800 Voltage indicator

PAD11RD Padlock with unique key

LOKHASP25 Hasp

LOK1 MCB green isolation lock

LOK2 MCB yellow isolation lock

LOK3 MCB blue isolation lock

LOK4 MCB small red isolation lock

LOK5 MCB red isolation lock

LOK10 Yellow MCB lock, 10mm clip

LOK11 Red MCB lock, 8mm clip

5 Locked out tags

LOKMP Black marker pen

TC55 Soft carry case

TC69 Soft carry case
