Martindale TEK903 Decade Resistance Box
Inc VAT: £205.73

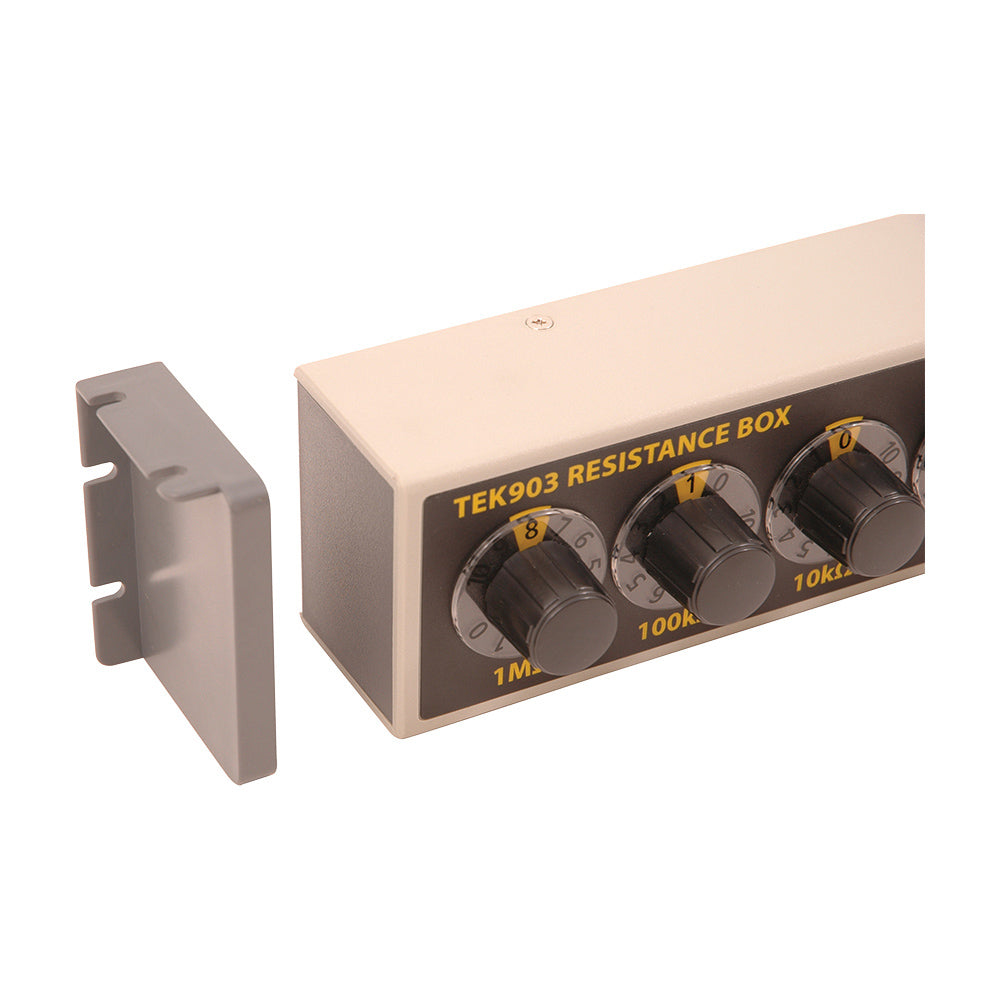

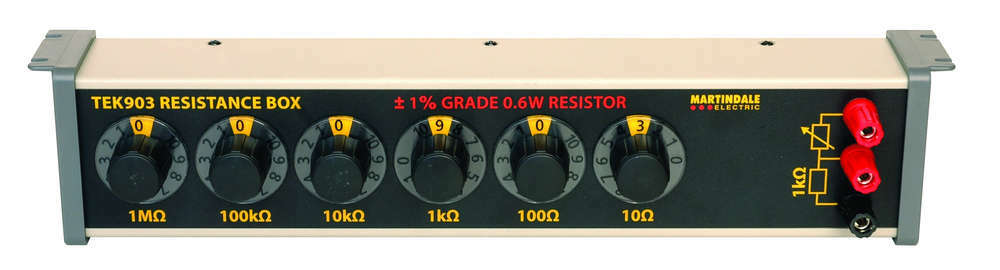

Martindale TEK903 Decade Resistance Box
- 6 Decade Resistance Box
- Ranges from 10Ω to 11.1111MΩ
- Accuracy of 1%
- Suitable for laboratory, educational & calibration applications
Description
The Martindale TEK903 decade resistance box, features 6 decades ranging from 10Ω to 11.1111MΩ, and high quality rotary switches. Extra terminals also form an accurate potential divider.
With a 1% accuracy, this is ideal for laboratory, education and calibration applications.
Specifications
| Resistance | 1% grade 0.6W per resistor variable from 10Ω to 11.1111MΩ in 6 decades |
| Typical residual (zero) resistance | <150mΩ |
| Temperature coefficient | 50 ppm/°C |
| Operating environment | 0°C to 50°C at <70% RH |
| Weight | 537g approx. |
| Dimensions | 345 x 71 x 51mm |
