Martindale TEK402 Continuity Tester
Inc VAT: £41.93

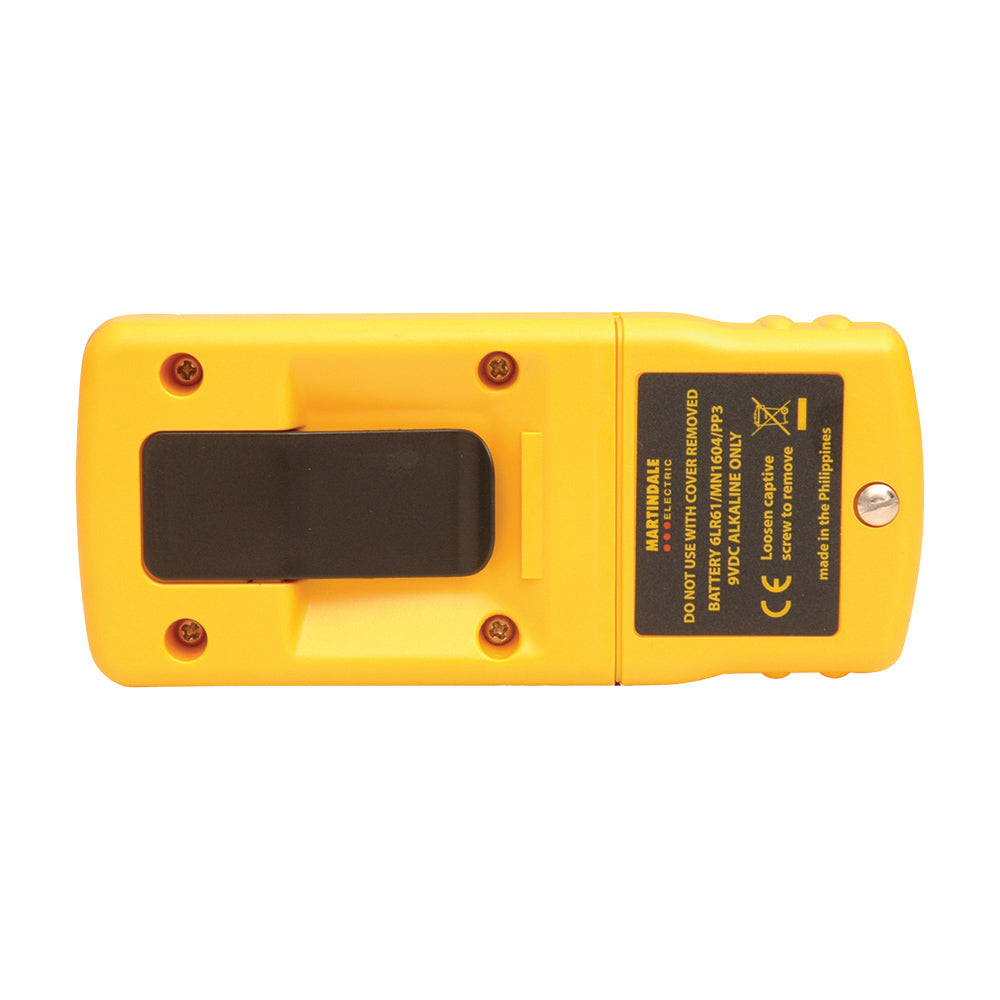

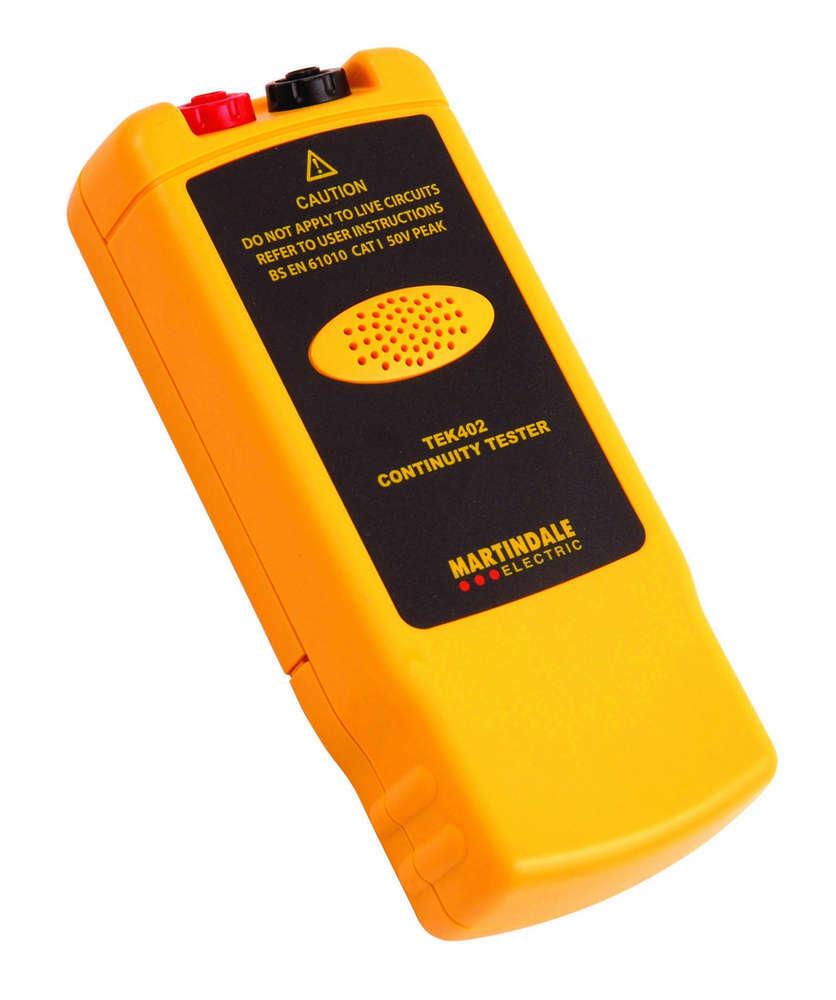

Martindale TEK402 Continuity Tester
- Loud buzzer for noisy environments
- Low cost continuity tester
- Not suitable for CAT II, III or IV environments
Description
The TEK402 is a compact continuity tester with audible indication. The tough construction makes it ideal for industrial and commercial environments including low voltage signalling, process control and training or educational applications.
The loud 85dB buzzer makes it ideal for use in noisy environments where many continuity buzzers, multimeters or 18th Edition multifunction testers cannot be heard.
Specifications
| Probe voltage | 9V DC |
| Test current | 5mA |
| Continuity range (audible) | Up to 10kΩ nominal |
| Audible output level | 85dB minimum at 30cm with zero continuity resistance |
| Supply | 9V, MN1604/PP3 alkaline battery |
| Complies with | BS EN 61010-1 CAT I 50V peak |
| Fuse rating | 50mA, 250V, fast acting ceramic fuse, 20mm x 5mm |
| Overvoltage | 50V AC/DC |
| Weight | 265g approx. (incl leads & battery) |
| Dimensions | 150 x 64 x 31mm |
| Includes | TL49 test leads, battery and manual |
| Do not use in CAT II, III or IV environments |
