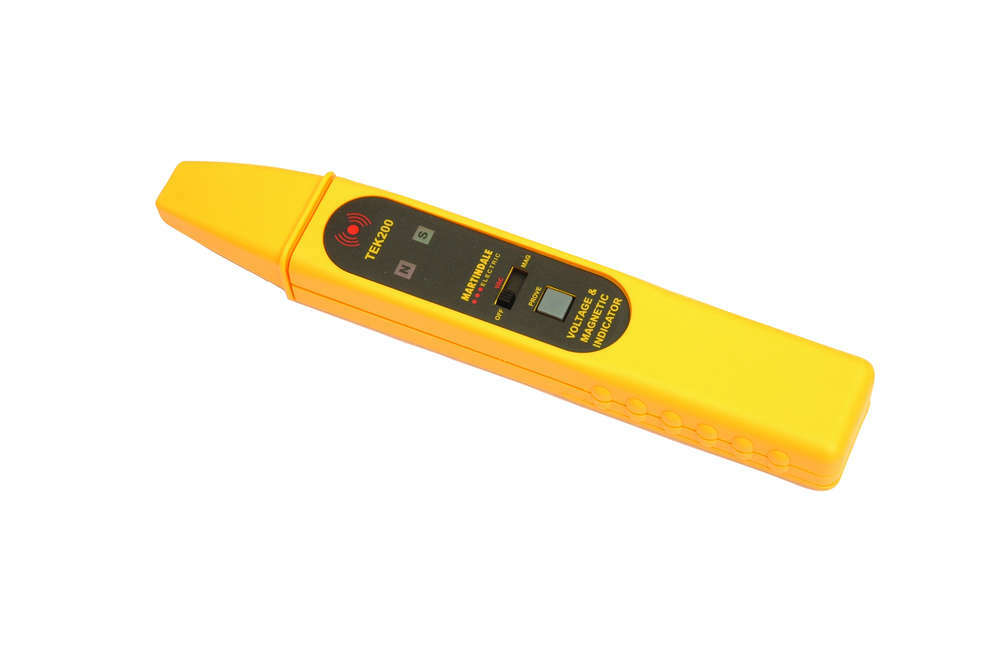

Martindale TEK200 Non Contact Voltage & Magnetic Field Detector
Inc VAT: £54.60
Martindale TEK200 Non Contact Voltage & Magnetic Field Detector
- Detects voltage 100 – 600V AC
- Detects magnetic field > 10mT
- Detects polarity of magnetic field
- Integrated self test function
- Visual & audible indication
Description
Detects the presence and polarity of magnetic fields produced by indicators, relays, solenoids and transformers.
The integral self-test activates the sensor in the tip of the tester at 50Hz as well as checking the battery and LED. This proves that the unit is fully functional and avoids the need for a separate proving unit.
In addition, this unit incorporates all the capability of the TEK100 voltage indicator detailed above, producing a versatile instrument in a slim and ergonomic ABS housing.
Specifications
| Voltage range | 100 to 600V AC |
| Frequency range | 45Hz-1kHz |
| Sensitivity | registers at 3mm for 110V 50Hz, 23mm for 240V 50Hz (depending on cable type) |
| Magnetic sensitivity | 10mT |
| Frequency range | 0 to 30kHz |
| Features | Self test proving function |
| Voltage Indication | LED and audible for N/S pole magnetic fields and voltages |
| Temperature | -5°C to 40°C |
| Supply | 9V alkaline battery, MN1604 or equivalent (included) |
| Weight | 120g approx. (incl battery) |
| Dimensions | 205 x 36 x 25mm |
