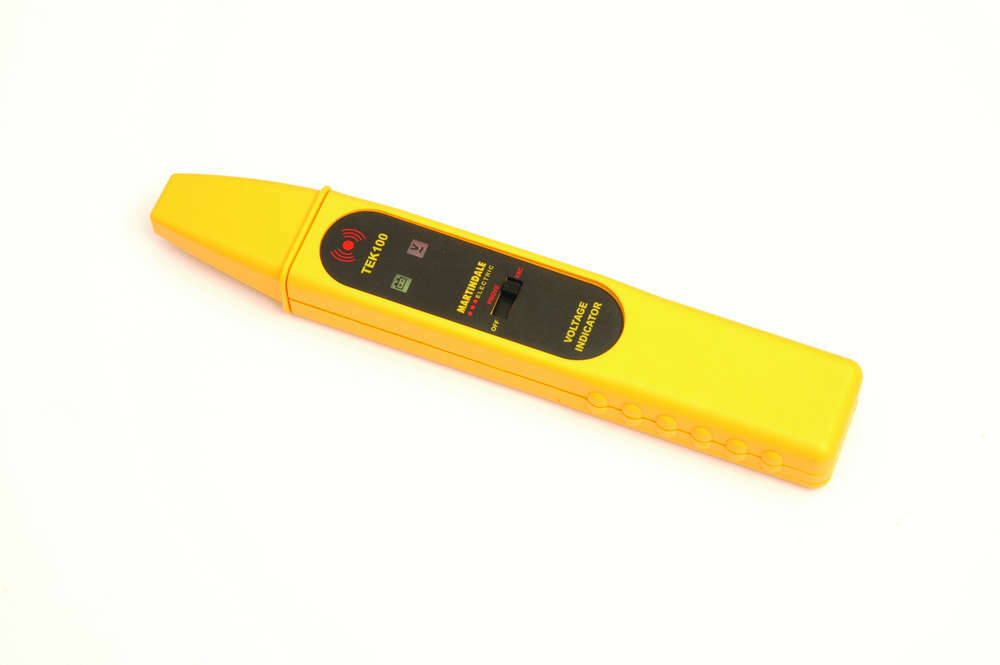

Martindale TEK100 Non Contact Voltage Detector
Inc VAT: £49.73
Martindale TEK100 Non Contact Voltage Detector - No Calibration Certificate Required is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Documents
Product Documents
Delivery and Shipping
Delivery and Shipping
- Standard Shipping: Delivery typically takes 2-4 business days.
- Continue to checkout for accurate shipping rates
Martindale TEK100 Non Contact Voltage Detector
Inc VAT: £49.73
Martindale TEK100 Non Contact Voltage Detector
- Detects 100 – 600V AC
- Integrated self test function
- Visual & audible indication
Description
This is suitable for detecting 100V to 600V AC without requiring physical contact with the conductor.
The presence of any voltage between 100V and 600V AC will generate an audible tone, together with a red visual indication.
The integral self test activates the sensor in the tip of the tester at 50Hz as well as checking the battery and LED. The entire circuit, not just the indicator LED, is therefore tested.
This proves that the unit is fully functional and avoids the need for a separate proving unit.
Specifications
| Voltage range | 100V to 600V AC |
| Frequency range | 45Hz to 1kHz |
| Temperature | -5°C to 40°C |
| Features | Integrated self test |
| Sensitivity | Typical sensing distances at 230V, 50Hz for different cable types
Flat 1mm2 twin & earth – 23mm Flat 2.5mm2 twin & earth – 23mm Round 1.5mm2 – 18mm |
| Voltage Indication | AC Voltage present – Red LED and audible tone
Battery OK – Green LED |
| Supply | 9V, PP3 alkaline battery IEC 6LR61, NEDA 1604A (included) |
| Weight | 120g (incl battery) |
| Dimensions | 205 x 36 x 25mm |
