Martindale PSI4000 Non Contact Phase Sequence Indicator
Inc VAT: £268.13
Martindale PSI4000 Non Contact Phase Sequence Indicator
- Non-contact for improved safety and ease of use
- Works on both insulated and uninsulated conductors

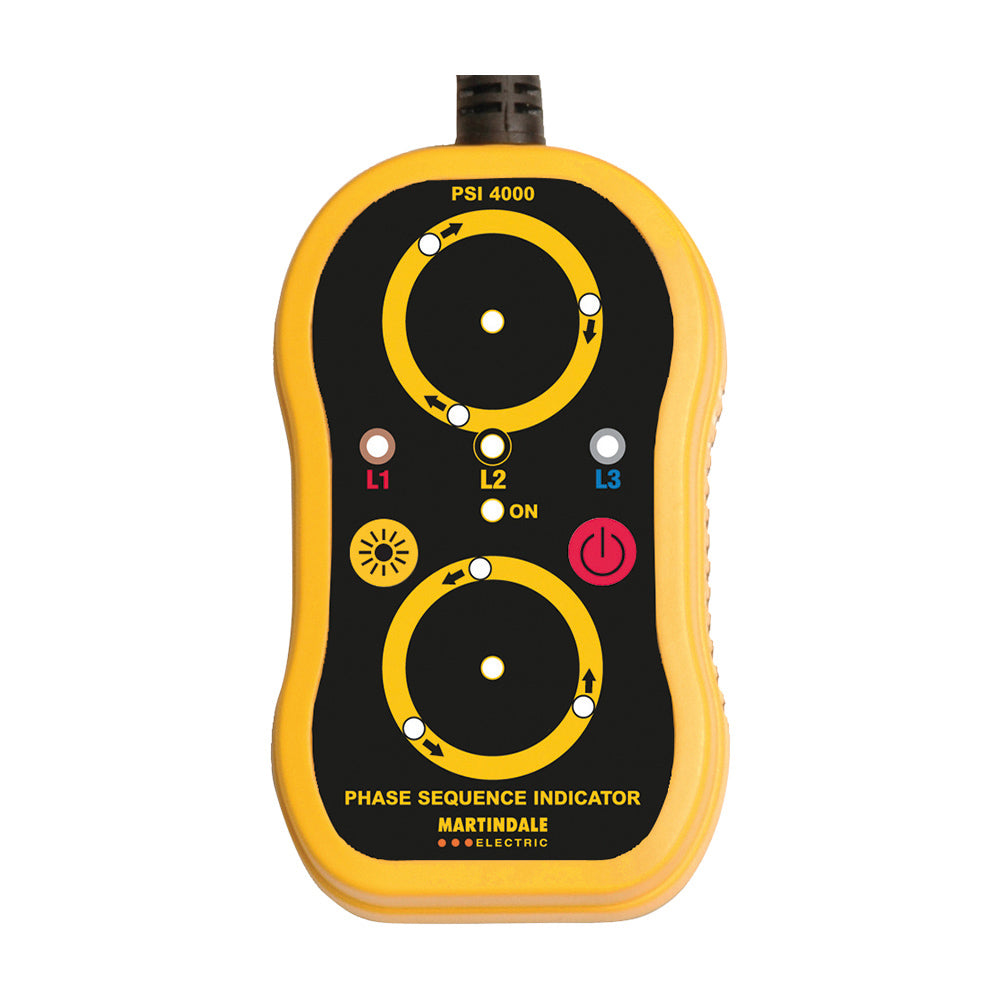

- Bright LED and buzzer indication of live phases and sequence
- Positive indication for clockwise rotation
- High quality colour coded clips
Description

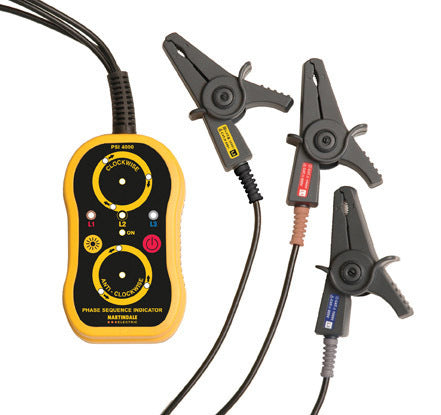

An unique non-contact phase rotation indicator that carries out measurements via inductive crocodile clips.
The increased safety design of this phase rotation tester allows for use on both insulated and non-insulated conductors with a buzzer and bright LED’s giving clear indication of clockwise or anti-clockwise phase rotation. There is also an Enhanced Brightness switch for clear indication in strong ambient light.
The Martindale PSI4000 is supplied with 4 x AA batteries, soft carry case and manual.
Specifications
| Measurement principle is static induction | |
| Input voltage | 75V-1000V 3-Phase AC |
| Frequency range | 45-65Hz |
| Conductor size | 2.4mm-30mm diameter |
| Operating temperature & humidity | -10°C to 50°C, Max. 80% RH |
| Battery current consumption | 15mA |
| Cable length | approx. 800mm |
| Supply | 1.5V X 4 (AA or LR6) alkaline batteries |
| Auto-off | After 5 mins of non activity |
| Low battery warning | Power LED flashes below 4.6V DC battery voltage |
| Safety standard | BS EN 61010-1
CAT III 1000V CAT IV 600V BS EN 61326-1 Class II Insulation |
| Weight | 370g approx. (incl batteries) |
| Dimensions | 118 x 69 x 38mm |

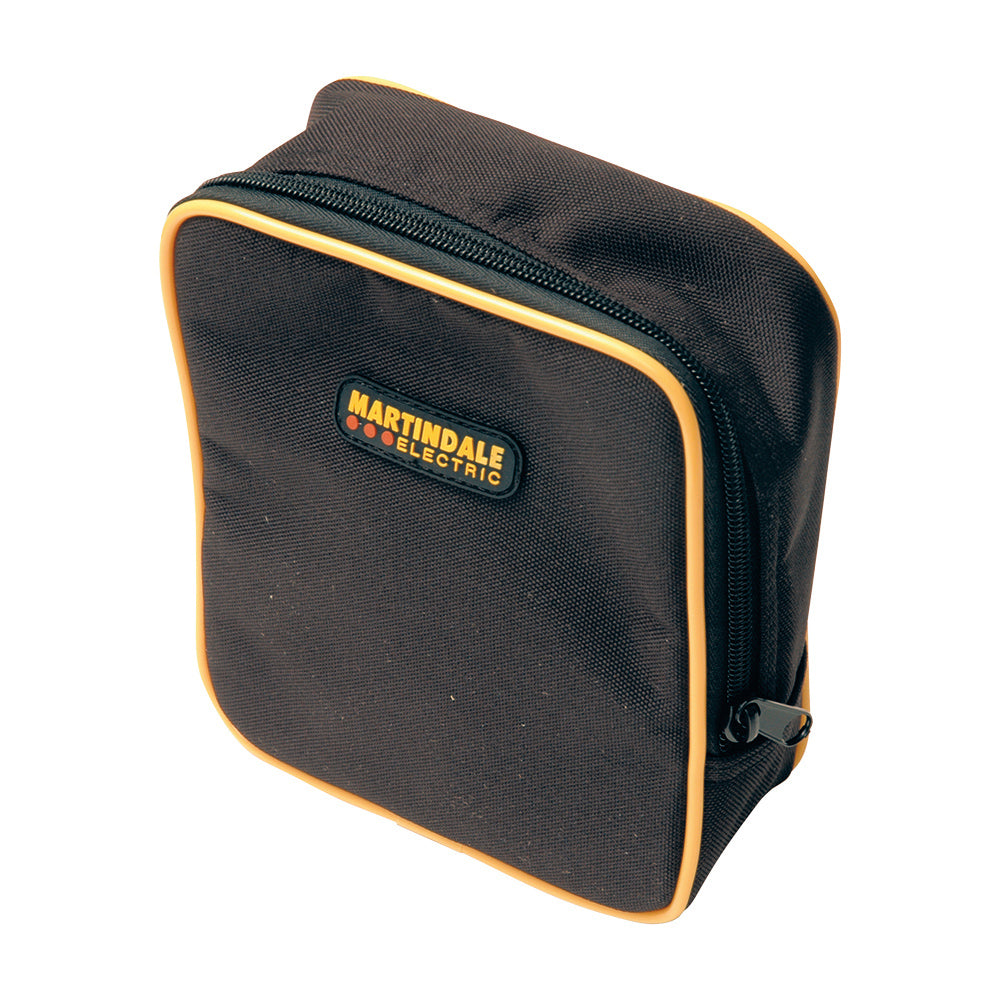

| Includes | TC54 soft case, batteries and manual |
