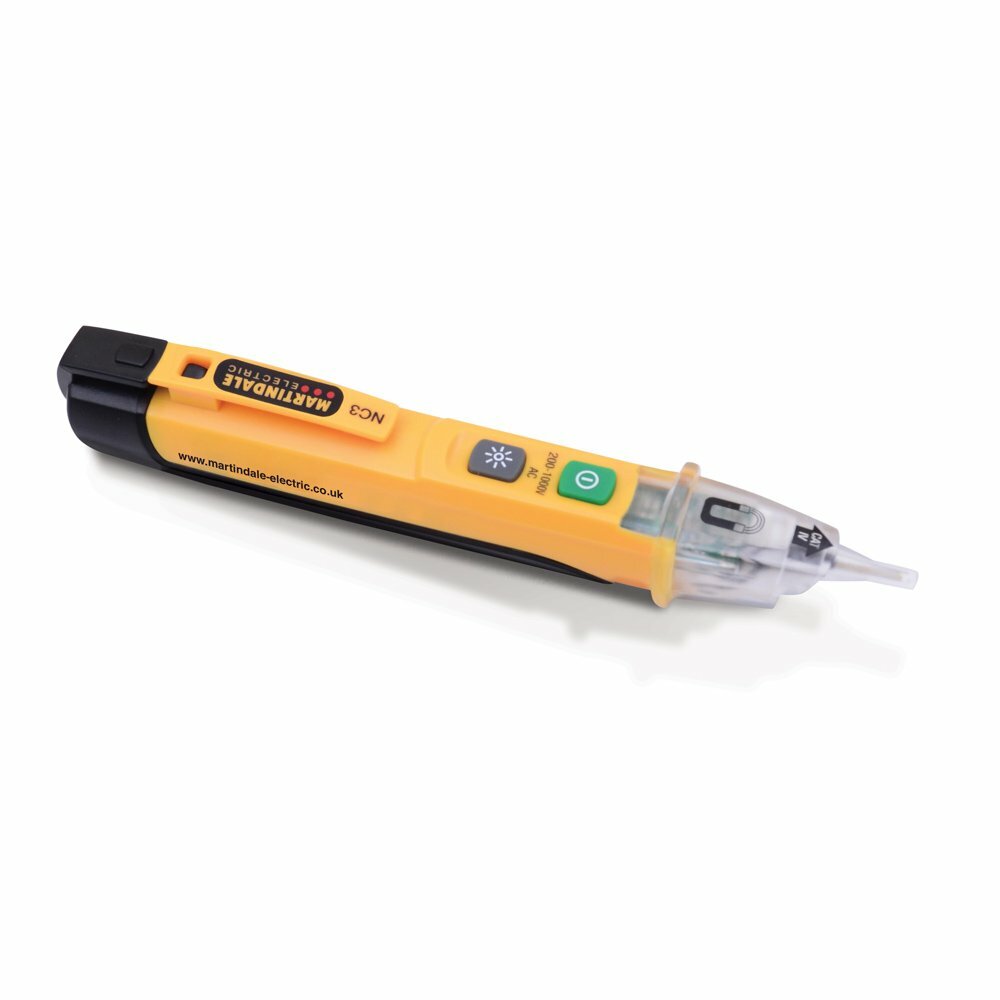

Martindale NC3 Non-contact Voltage and Magnetic Field Tester
Inc VAT: £25.50
Martindale NC3 Non-contact Voltage and Magnetic Field Tester
- Voltage and magnetic field detection
- Audible and visual indication from 200V to 1000V AC
- Red for voltage, yellow for magnetic fields
- Extended probe for easy access
- LED torch for use in low light
- LED pulse and auto power off
Description

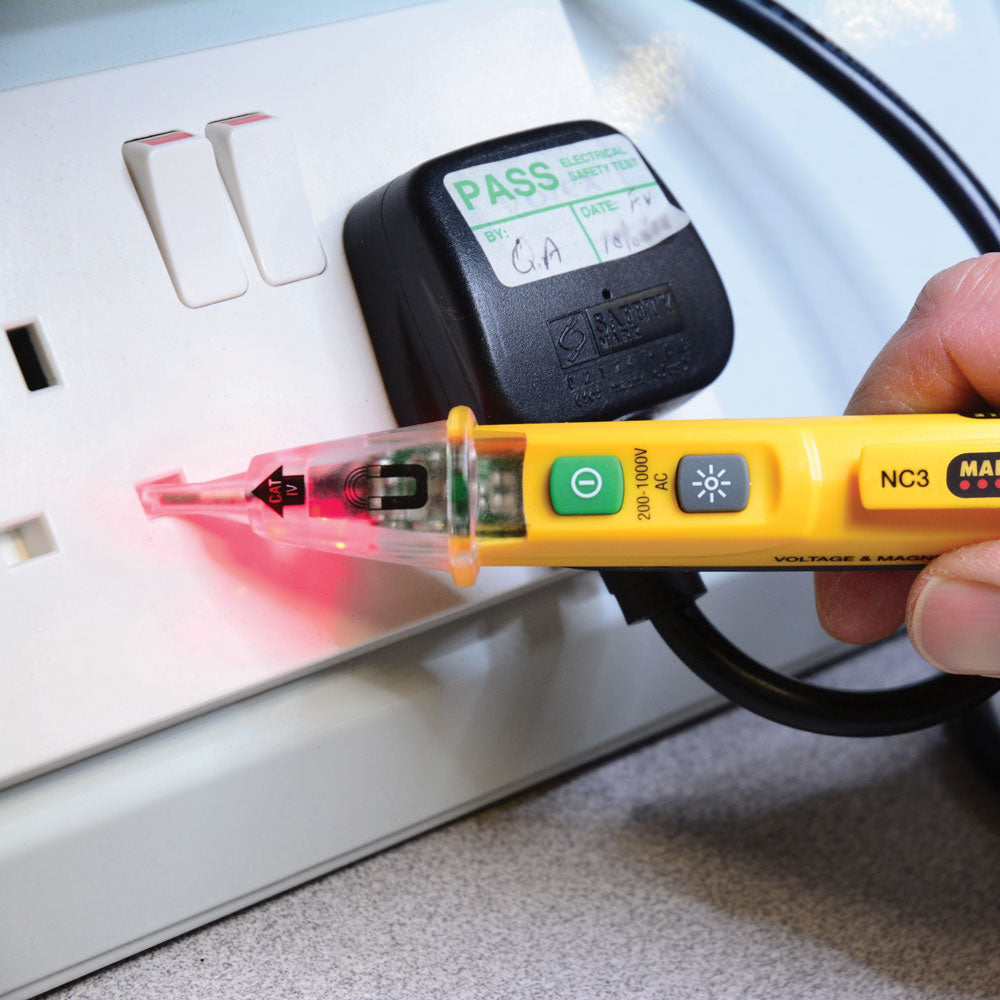

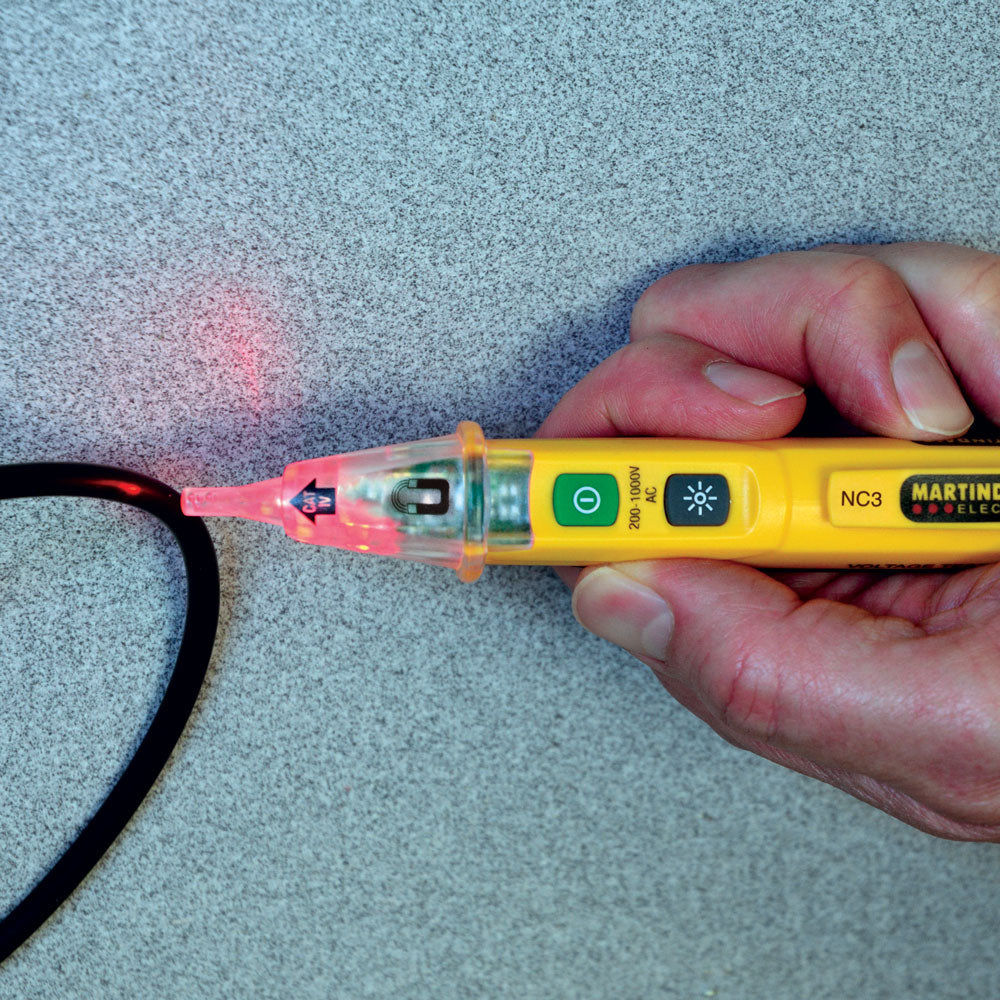

The NC3 is a non-contact voltage and magnetic field tester for accurately detecting the presence of AC voltages between 200V and 1000V. When voltages are detected, a bright red LED illuminates the clear tip of the NC3 and a buzzer sounds.

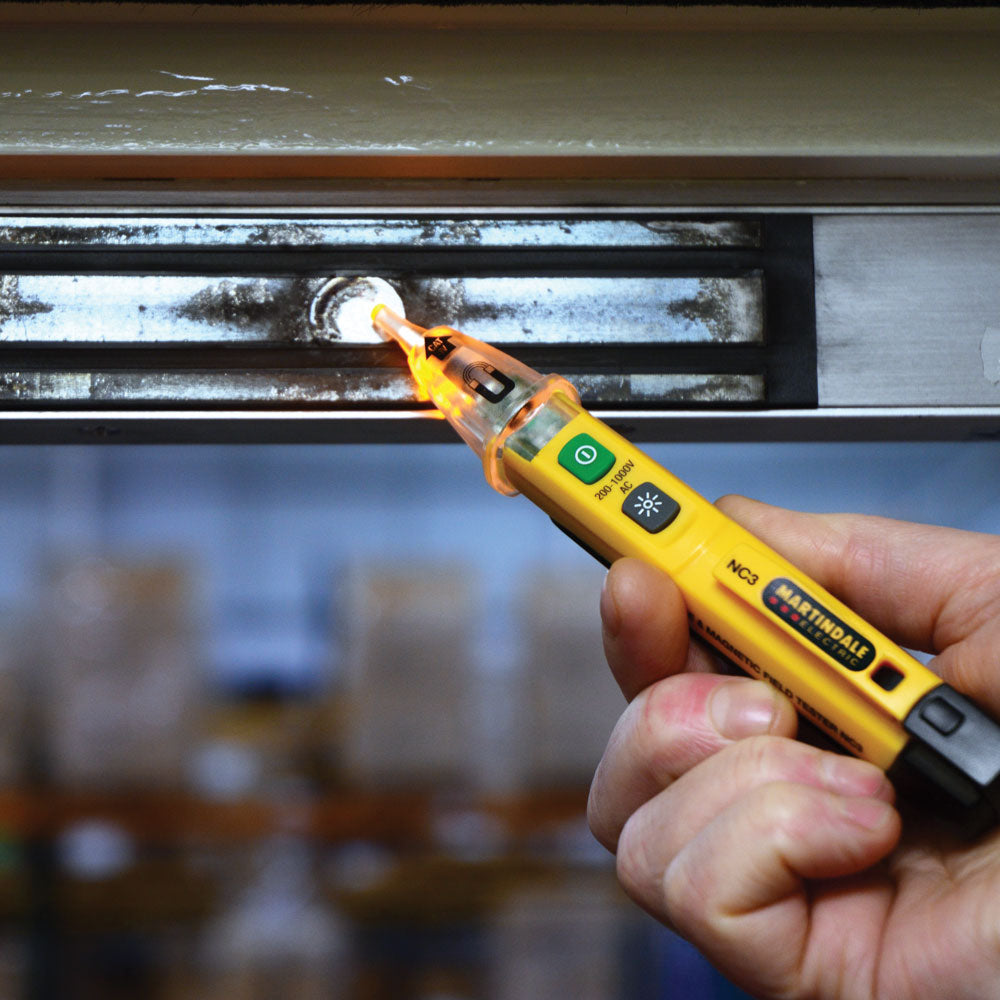

In addition to voltage detection, the NC3 can be used for testing relays and solenoid valves without having to fully dismantle the equipment. On detecting a magnetic field, a bright yellow LED illuminates the tip of the tester. Applications include troubleshooting and servicing of control equipment in process industries, energy, transportation and pneumatic and hydraulic control systems.
A built-in torch in the tip is ideal for use in low light areas clearly illuminating the area under test. Auto power off and a recessed on button ensure a long battery lifetime and the NC3 functionality also includes low battery indication.
The NC3 replaces the Martindale VT3.
Specifications
| Indication Range | 200-100V AC 40-400Hz |
| Voltage Sensitivity | indicates 4mm approx. from a conductor at 240V AC |
| Magnetic Sensitivity | > 10mT |
| Indication | Audible and LED |
| Conforms to | BS EN 61010-1 |
| Supply | 2x AAA batteries (included) |
| Weight | 55g (incl. battery) |
| Dimensions | 155mm length, approx. 25mm diameter |
