Martindale MM94 True RMS Digital Multimeter
Inc VAT: £221.05
Martindale MM94 True RMS Digital Multimeter
- Autoranging True RMS readings
- High resolution 60,000 count
- 750V AC, 1000V DC
- 0.01uA – 20A
- 0.001Hz – 10MHz Frequency
- 1pF – 6mF Capacitance
- Continuity & Diode test
- Temperature Measurement
- 600V CAT IV Safety rating
Description

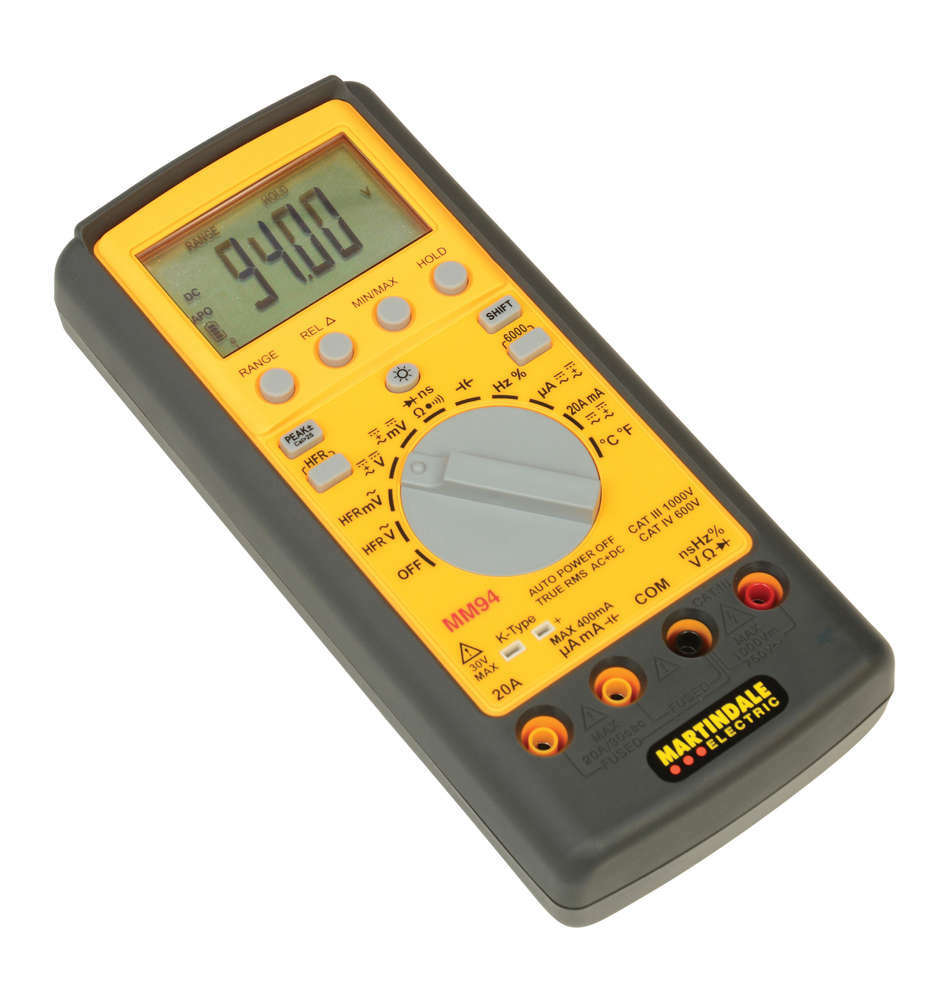

The MM94 is a high performance True RMS multimeter with a 600V CAT IV safety rating. It has an extended current measurement range up to 20A for short cycle measurements. Measurement capabilities include AC/DC voltage, capacitance, resistance and temperature with the included K Type thermocouple. Features include Min/Max and Peak measurement and a high frequency filter to optimise readings for distorted waveforms plus a relative mode.
The rugged design includes a 60,000 count backlit display with analogue bargraph.
Specifications
| Display | 4½ digit, 60,000 Count |
| Voltage AC | 0.01mV-750V(± 1% rdg ± 20 dgt) |
| Voltage DC | 0.01mV-1000V (± 0.08% rdg ± 5 dgt) |
| Current AC | 0.01μA-20A*(± 1.5% rdg ± 20 dgt) |
| Current DC | 0.01μA-20A* (± 0.5% rdg ± 10 dgt) *Continuous max 10A |
| Resistance | 0.01Ω-60MΩ(± 0.3% rdg ± 20 dgt) |
| Continuity | <40Ω (audible indication) |
| Frequency | 0.001Hz-10MHz(± 0.1% rdg ± 10 dgt) |
| Capacitance | 1pF- 6mF(± 3.0% rdg ± 10 dgt) |
| Temperature | -50°C to 1300°C(± 1% rdg ± 1°C, 0-400°C) |
| Features | True RMS readings, duty cycle, continuity, diode test, k-type, thermocouple, high frequency filter, conductance |
| Weight | 400g approx |
| Dimensions | 198 x 90 x 44 mm |

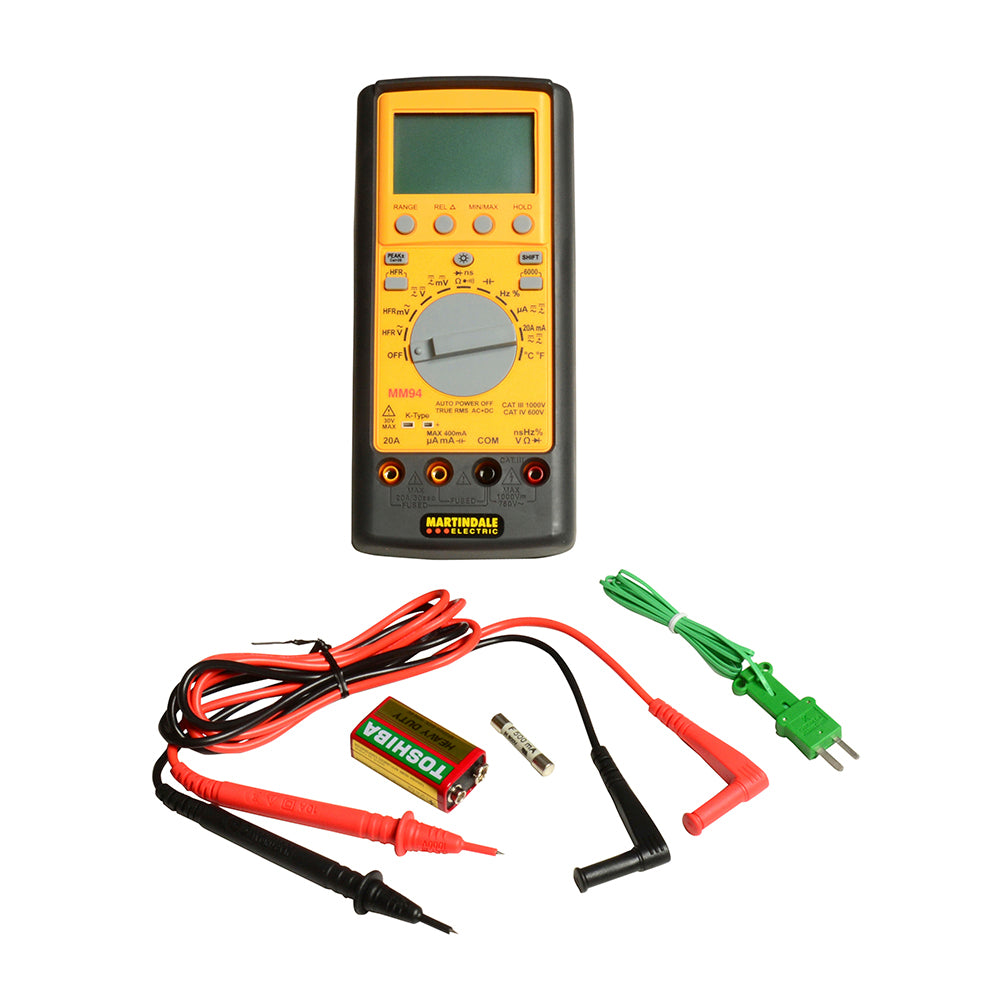

| Includes | TL16 leads, 1 x spare fuse, 9V battery, manual and 1 x k-type thermocouple |
