Martindale MM68 True RMS Digital Multimeter
Inc VAT: £151.09

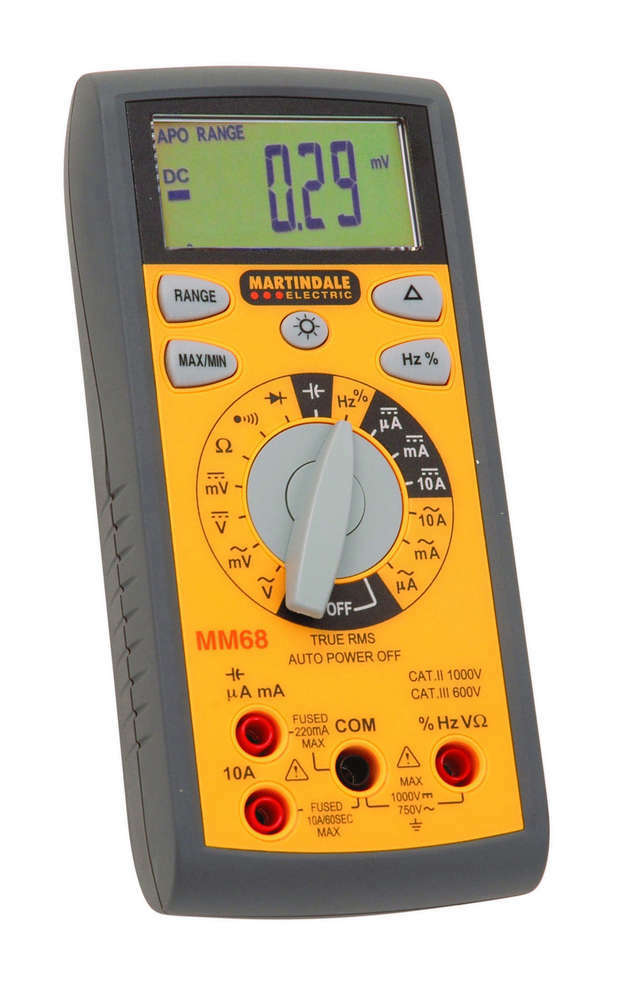

Martindale MM68 True RMS Digital Multimeter
- True RMS readings
- 750V AC, 1000V DC
- 0.01μA – 10A
- 0.01Hz – 22MHz Frequency
- 1pF – 22mF Capacitance
- Continuity & Diode test
- Autoranging
Description
The MM68 is a True RMS digital multimeter which measures AC voltage up to 750V, DC voltage up to 1000V and both AC and DC current up to 10A.
It measures frequency, capacitance, resistance, and also has duty cycle, diode test and an audible continuity test which sounds at less than 100Ω. The 4½ digit LCD screen displays the results as values and on a 22 segment analogue bar graph. The MM68 also has an auto-power off feature and on screen low battery indication.
Specifications
| Display | 4½ digit |
| Voltage AC | 0.01mV-750V (± 1.2% rdg ± 10 dgt) |
| Voltage DC | 0.01mV-1000V (± 0.05% rdg ± 5 dgt) |
| Current AC | 0.01µA-10A (±1.5% rdg ± 5 dgt) |
| Current DC | 0.01µA-10A (±0.5% rdg ± 10) |
| Resistance | 0.01Ω-220MΩ (± 0.5% rdg ± 10 dgt) |
| Continuity | <30Ω (audible indication) |
| Frequency | 0.01Hz-22MHz (± 0.1% rdg ± 3 dgt) |
| Capacitance | 1pF-22mF (± 3.0% rdg ± 5 dgt) |
| Features | True RMS readings, duty cycle, continuity, diode test |
| Pollution degree | 2 for indoor use |
| Weight | 285g approx. |
| Dimensions | 165 x 78 x 42.5mm |
| Includes | TL16 leads, 1 x spare fuse, 9V battery(installed) and manual |
