Martindale FD650 Digital Fuse Finder Kit
Inc VAT: £123.00
Martindale FD650 Digital Fuse Finder Kit
- Trace fuse and breakers from sockets
- Trace from light fittings
- Trace from one distribution board to another
- Supplied with soft carry case
Description
The Elite Professional Fuse Finder makes identifying poorly labelled fuses and breakers easy without the need to power down each circuit to identify the one you need to work on.
The comprehensive professional Kit expands the capabilities of the standard FD550 so that it can also be used on light fittings or other points in a circuit in addition to 13A sockets.
The receiver has both fast manual mode and auto threshold mode set by a single sweep over the board. The auto mode sets the sensitivity to ignore weaker signals which can be caused by coupling between circuits ensuring easy detection in a wide range of installations.
The receiver will work with multiple transmitters and can also be used as a non-contact voltage indicator.

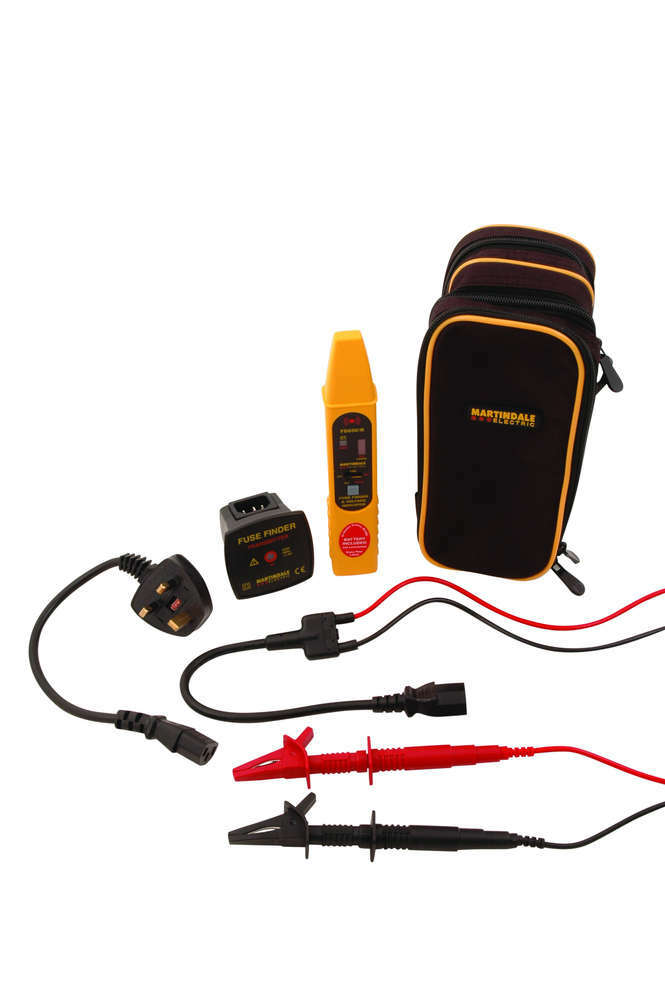

The kit includes a twin lead set with crocodile clips (TL83), IEC mains lead (EX332) and a soft carry case.
Specifications
| FD600 Transmitter | |
| Voltage rating | 230V |
| Frequency range | 30-70Hz |
| Switching frequency | 5Hz approx. |
| Transmission pulse width | 1.7µS |
| Transmission pulse | 20A max |
| Earth leakage | Nil |
| Power consumption | 1W approx. |
| IP rating | IP20 |
| Receiver | CAT IV 600V |
| Supply | from mains |
| Dimensions | 65 x 65 x 50mm |
| Weight | 65g approx. |
| FD650 Receiver | |
| Tracing depth for fuse assignment | 0-10cm approx. depending on local conditions |
| Sensitivity setting | via digital stepping |
| IP rating | IP20 |
| Supply | 9V battery, MN1604/PP3, IEC 6LA61 (alkaline only) |
| Weight | 135g approx. (incl battery) |
| Dimensions | 202 x 32 x 22mm |
| Complies with | EMC standards
Transmitter: CAT III 300V Receiver: CAT IV 600V |
| FD650 kit includes | FD650/R receiver
FD600/T multi-purpose transmitter IEC 13A mains lead adaptor TL83 2 wire fused leads with IEC connector TC57 carry case Battery |
