Martindale FD500 Analogue Fuse Finder
Inc VAT: £65.26
Martindale FD500 Analogue Fuse Finder
- Easy location of fuses and breakers
- Simple thumbwheel adjustment of sensitivity
- For use on live circuits
- Socket to socket tracing
- Audible and visual indication
Description

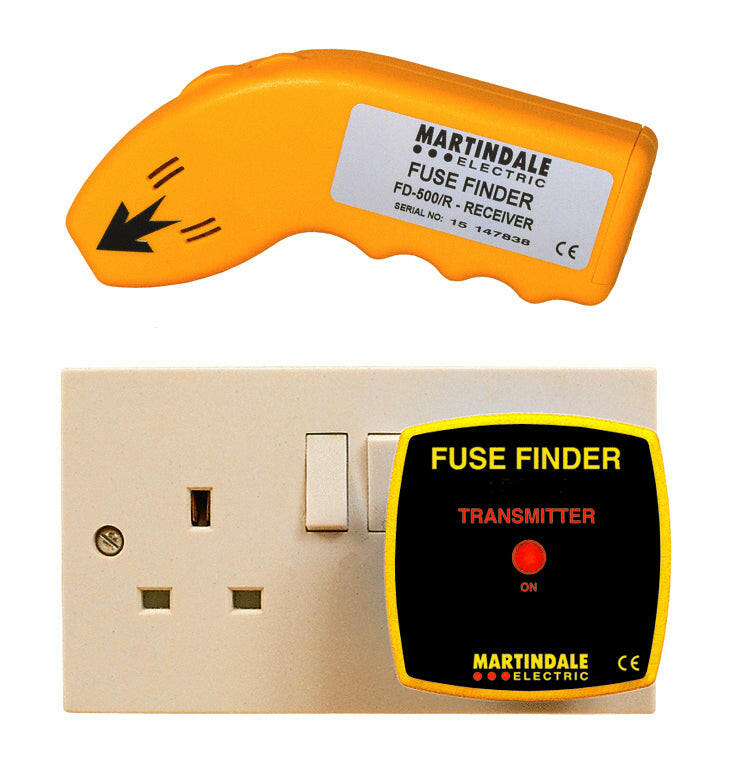

The analogue Martindale Fuse Finder Kit (FD500) finds which fuse or breaker controls a circuit. It also enables tracing from socket to socket on a circuit.

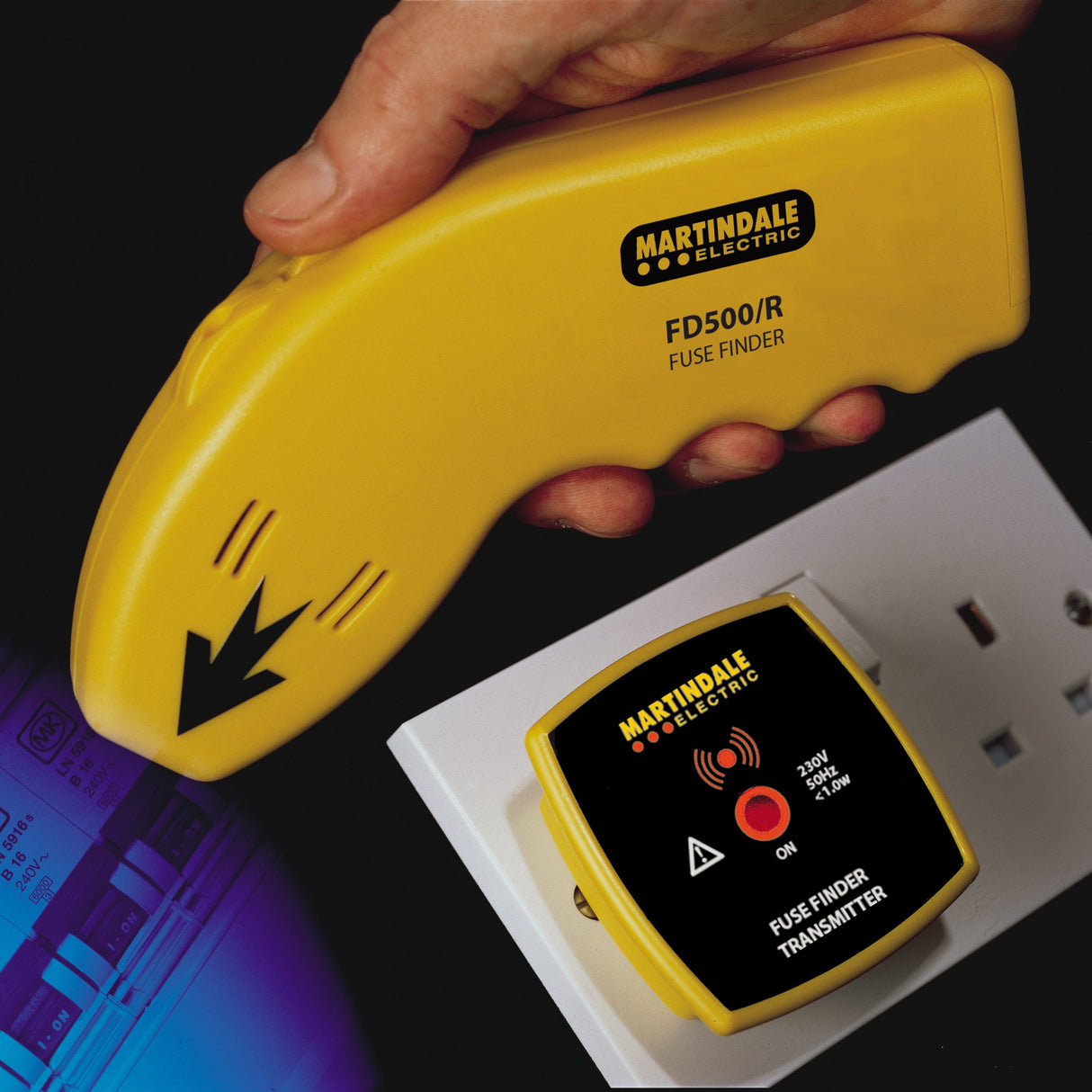

The transmitter (FD500/T) takes its power from the mains and emits a signal which the adjustable sensitivity receiver (FD500/R) can pick up.
This combination can easily distinguish the appropriate circuit, even on a crowded fuse board. Sensitive analogue adjustment by thumb wheel finds the right breaker rapidly.
The FD500 like the martindale FD650 kit is supplied with a transmitter, receiver, batteries and instruction manual.
Specifications
| FD500 Transmitter | |
| Voltage rating | 230V |
| Frequency range | 30-70Hz |
| Switching frequency | 5Hz approx. |
| Transmission pulse width | 1.7µS approx. |
| Transmission pulse | 20A max |
| Earth leakage | Nil |
| Power consumption | 1W approx. |
| IP rating | IP20 |
| Supply | from mains |
| Dimensions | 65 x 65 x 50mm |
| Weight | 65g approx. |
| FD500 Receiver | |
| Tracing depth for fuse assignment | 0-10cm approx. depending on local conditions |
| Sensitivity setting | rotary |
| Temperature range | -10°C to 40°C at max 60% RH |
| IP rating | IP20 |
| Supply | 9V battery, MN1604/PP3, (included) |
| Weight | 135g approx. incl battery |
| Dimensions | 160 x 55 x 30mm |
| Complies with | EMC standards |
| FD500 Kit includes | FD500/R receiver, FD500/T transmitter, battery |
