Martindale  |  SKU: EZ650

Martindale EZ650 Socket Tester Kit with Earth Loop Test

£124.22

Inc VAT: £149.06

Shipping calculated at checkout.

Product Documents

Delivery and Shipping

- Standard Shipping: Delivery typically takes 2-4 business days.

- Continue to checkout for accurate shipping rates

Share with your team, or Save page as a bookmark

Martindale EZ650 Socket Tester Kit with Earth Loop Test


  • Complete socket testing kit
  • Leads for testing light fittings
  • Supplied with soft carry case


Description

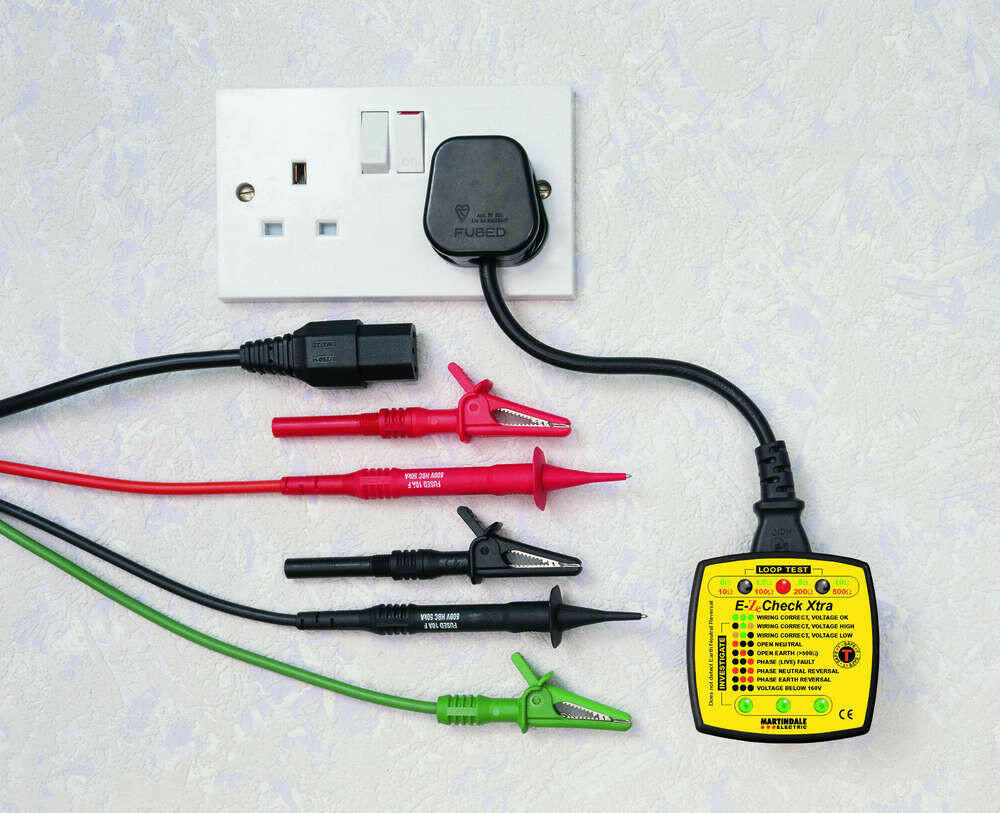

The EZ650 is a kit version of the EZ150 advanced socket tester and is supplied with an interchangeable 13A mains lead and TL88 3-way fused test leads with croc clips. This combination allows the socket tester to be used at mains sockets, light fittings, fused connection units and distribution boards.

The EZ650 kit shares the same T-SafeTM technology as the EZ150 to ensure that RCDs and RCBOs will not trip when the loop impedance check is carried out.

The kit provides everything needed for socket testing and is supplied in a compact, soft carry case.


Specifications

Nominal supply 230V, 50 Hz
Earth loop impedance span 0-1.7Ω

1.7 to 5Ω

5 to 10Ω

10 to 100Ω

100 to 200Ω

200 to 500Ω

Earth loop threshold accuracy ± (10% + 0.3Ω)*
Voltage low indication <195V
Voltage high indication >270V
Earth neutral voltage high indication >30V
Open earth indication >500Ω
Temperature Range -10 to 40°C, non-condensing
Power consumption <2.5 W
Complies with BS EN 61010-1
Weight 1kg approx.
Dimensions 65 x 65 x 50mm
Includes fused lead set, carry case
*Note measurement accuracy can be affected by noise and highly inductive or capacitive components distributed on the supply
