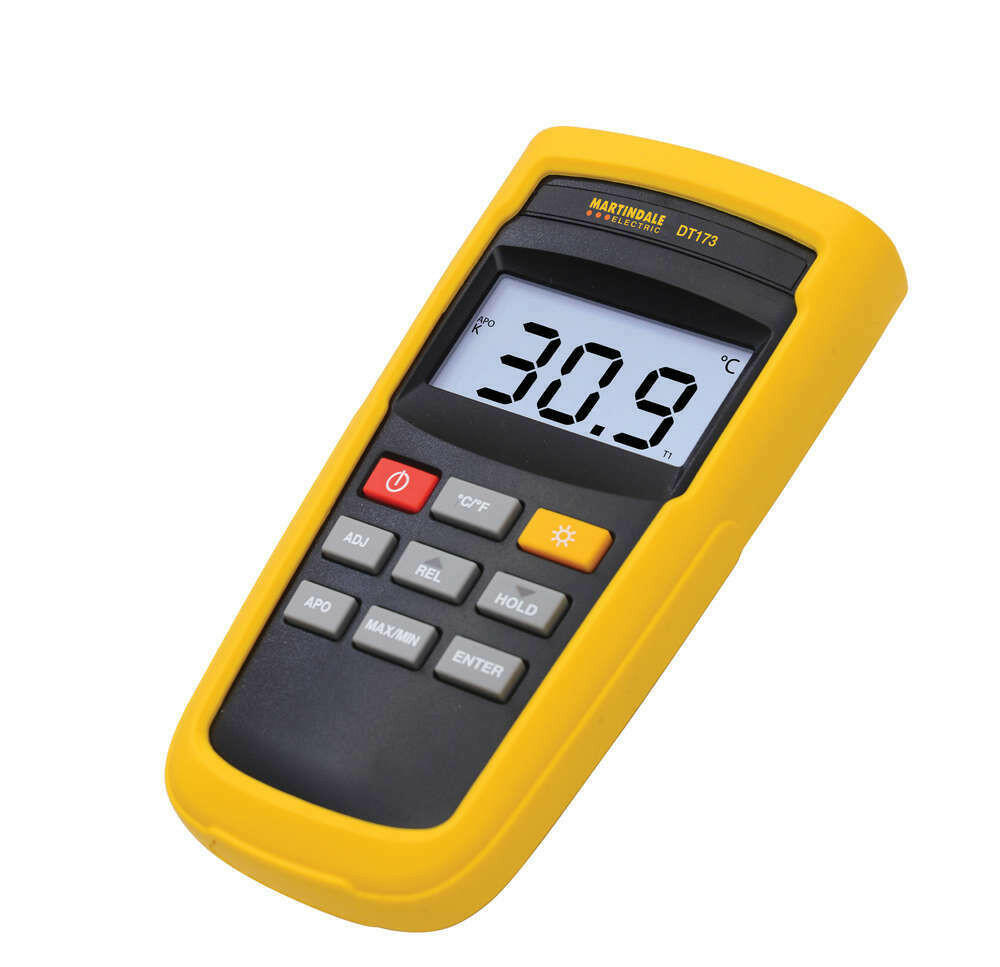

Martindale DT173 Single Input K Type Digital Thermometer
Inc VAT: £99.37
Martindale DT173 Single Input K Type Digital Thermometer - No Calibration Certificate Required is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Documents
Product Documents
Delivery and Shipping
Delivery and Shipping
- Standard Shipping: Delivery typically takes 2-4 business days.
- Continue to checkout for accurate shipping rates
Martindale DT173 Single Input K Type Digital Thermometer
Inc VAT: £99.37
Martindale DT173 Single Input K Type Digital Thermometer
- Single K-type input
- Auto ranging -200°C to 1372°C, -328°F to 1999°F
- Resolution to 0.1°C
- MIN / MAX /AVG recording
- Relative & Hold functions
- Large character backlit display
- Includes thermocouple
Description
The DT173 is a high performance single input K Type digital thermometer with a measuring range of -200°C to 1372°C. The compact thermometer is supplied in a tough holster and has large digits and a back light for easy viewing in all environments. There is a fold away built in stand for optimum viewing angle.
The DT173 is supplied with a bead thermocouple and is compatible with a wide range of Martindale K Type probes including air probes, penetration probes and clamp and surface probes.
Readings can be displayed in either Centigrade or Fahrenheit and the thermometer has an adjustable offset to optimise thermocouple performance over the desired temperature range. There is a MIN/MAX/AVG mode for recording extremes of readings. In this mode the auto power off function is disabled to allow recording over longer periods of time.
Specifications
| Measurement range | -200°C to 1372°C. (-328°F to 1999°F) (limited by the range of the thermocouple probe used) |
| Resolution | 0.1° to 199.9°C/°F, 1° ≥ 200°C/°F |
| Temperature accuracy: | -200°C to -60°C, ± (0.1% of rdg + 2°C)
-60°C to 1372°C, ± (0.1% of rdg + 1°C) -328°F to -76°F, ± (0.1% of rdg + 4°F) -76°F to 1999°F, ± (0.1% of rdg + 2°F) |
| Input protection | 24V DC or AC rms maximum input voltage on any combination of input pins. |
| Input connector | Accepts standard miniature thermocouple connectors (flat blades spaced 7.9mm. center to center). |
| Supplied thermocouple probe | 1.2M Type K thermocouple bead probe (teflon tape insulated) |
| Maximum insulation temperature | 260°C (500°F) |
| Probe accuracy | ± 2.2°C or ± 0.75% of rdg |
| Display | 3½ digit liquid crystal display (LCD) with maximum reading of 1999 |
| Measurement rate | 2.5/second |
| Polarity | Automatic, positive implied, ‘-‘ for negative polarity indication |
| Supply | 4 x 1.5V, AAA alkaline batteries (IEC LR03, NEDA 24A) |
| Battery life | 200 hours |
| Dimensions | 160 x 83 x 38 mm |
| Weight | 240g approx. incl batteries |
| Includes | Type K bead thermocouple, 4 x 1.5V AAA alkaline batteries and manual |
