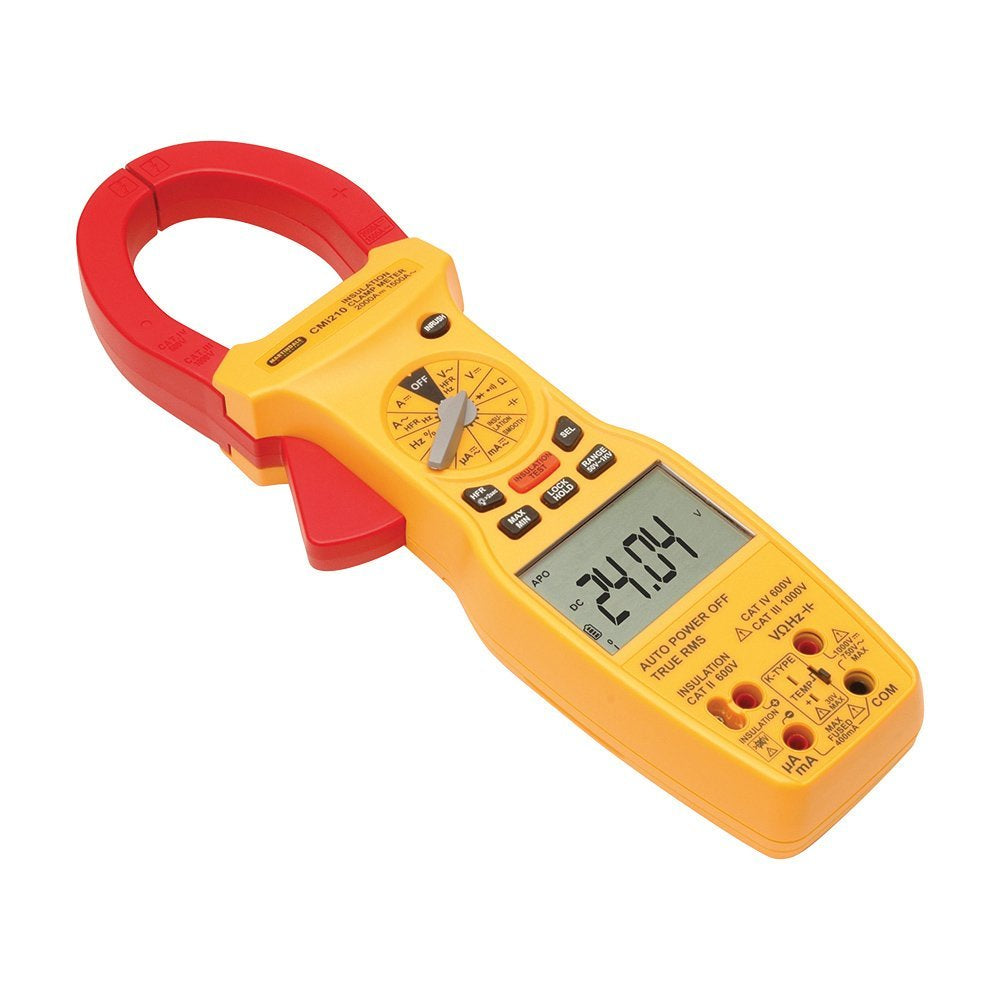

Martindale CMi210 AC/DC TRMS Insulation Clamp Meter
Inc VAT: £379.96
Martindale CMi210 AC/DC TRMS Insulation Clamp Meter - No Calibration Certificate Required is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Product Documents
Product Documents
Delivery and Shipping
Delivery and Shipping
- Standard Shipping: Delivery typically takes 2-4 business days.
- Continue to checkout for accurate shipping rates
Martindale CMi210 AC/DC TRMS Insulation Clamp Meter
Inc VAT: £379.96
Martindale CMi210 AC/DC TRMS Insulation Clamp Meter
- Insulation resistance test from 50V to 1000V up to 6GΩ
- Insulation resistance test to 6GΩ
- True RMS AC current 1500A
- DC current to 2000A
- True RMS voltage to 750V
- DC voltage to 1000V
- Continuity with audible indication
- Duty cycle, resistance, capacitance , frequency, temperature
Description
A unique insulation clamp meter for the installation, testing and maintenance of domestic and industrial installations. This high specification clamp meter can perform insulation tests to 6G Ohms with 5 test voltages from 50V to 1000V.
The clamp provides True RMS measurement of AC current to 1500A and AC voltage to 750V. It will also measure DC current to 2000A and DC voltage to 1000V. The CMi210 has all the same test functions you would expect to find on a high specification multimeter with the added benefit of temperature measurement.
Specifications
| Current AC | True RMS 0.1A to 1500A (2 ranges) |
| Accuracy | 2.5% rdg + 10 dgt (≤ 600A) 60Hz |
| Current DC | 0.1A to 2000A (2 ranges) |
| Accuracy | 2.0% + 5 dgt (≤600A) |
| Voltage AC | True RMS 0.001V to 750V, autoranging |
| Accuracy | 1.5% rdg + 8 dgt |
| Voltage DC | 0.001V to 1000V autoranging (5 ranges) |
| Accuracy | 0.5% rdg + 2 dgt |
| Insulation resistance | 300kΩ-6GΩ depending on voltage test |
| Accuracy | 250-1000V 1.5% +5 |
| Capacitance | 0.001µF to 6.6mF (4 ranges) |
| Frequency | 0.01Hz to 10MHz (7 ranges) |
| Resistance ranges | 600Ω, 6kΩ, 60kΩ, 600kΩ, 6MΩ, 60MΩ |
| Resolution | 0.1Ω on 600Ω |
| Accuracy | 1.0% rdg + 5 dgt on 600Ω to 600kΩ |
| Temperature | -50°C to 1300°C (-58°F to 2372°F) K-type probes |
| Continuity | buzz at <40Ω |
| Maximum conductor | 55mm diameter or 70mm x 18mm bus bar |
| Features | Diode test, duty cycle |
| Dimensions | 326 x 108 x 53mm |
| Weight | 720g approx. incl batteries |
| Includes | Batteries, case, TL45 test leads, type K thermocouple and manual |
Accessories
-
Martindale TL180 Switching Probe
Optional switching probe for use ONLY with the Martindale CMi210 and the ET4000 series multifunction testers. -
Martindale TL45 Unfused Test Leads
- Red & black probe with lantern tips & probe caps
- Supplied with crocodile clips
- Right angled 4mm banana plugs
-
Martindale TL55 GS38 Fused Test Leads
- Red & black with GS38 500mA fused probe
- Supplied with fused crocodile clips
- Right angled 4mm banana plugs
