Martindale CM84 1000A AC/DC Clamp Meter
Inc VAT: £201.79

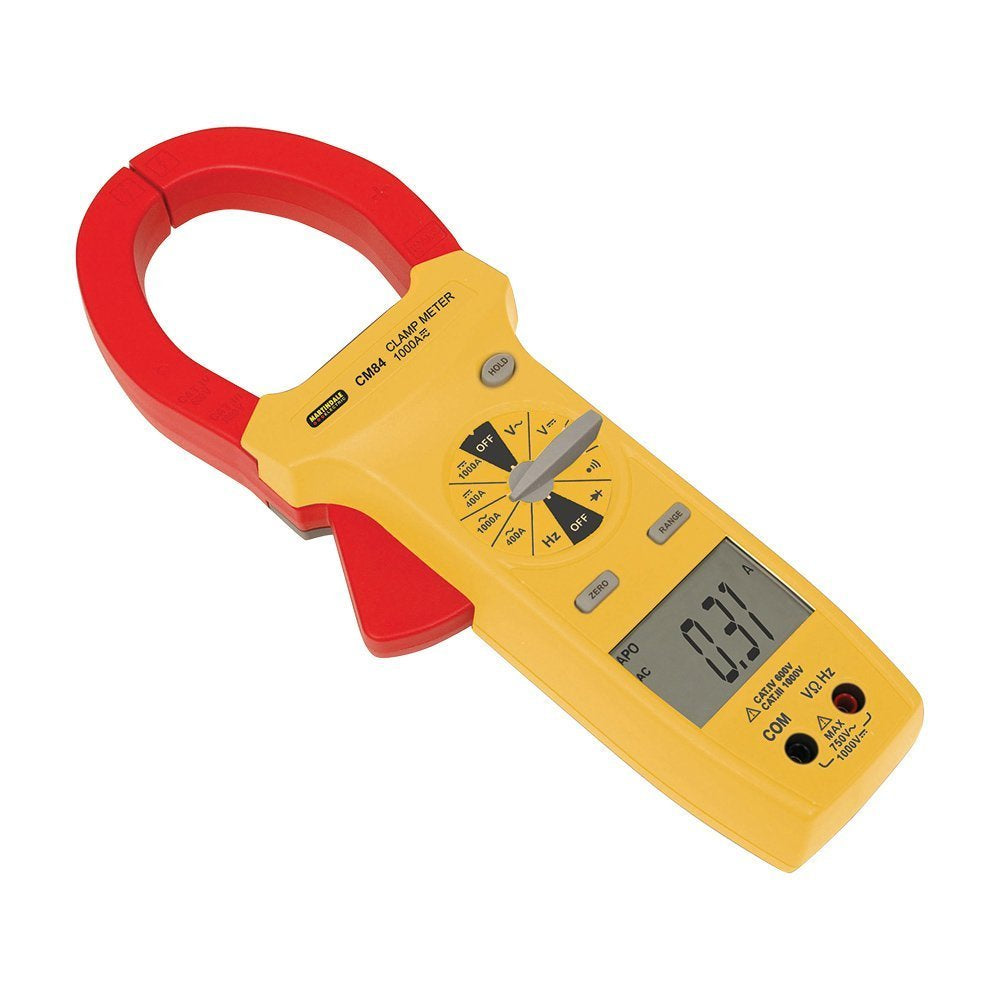

Martindale CM84 1000A AC/DC Clamp Meter
- AC current to 1000A
- DC current to 1000A
- AC voltage to 750V, DC voltage to 1000V
- Resistance to 40MΩ
- Continuity with audible indication
- Frequency, diode test, auto power off
- Display hold, auto or manual ranging.
Description
The CM84 is a high specification 1000A clamp meter, packed full of functions for the installation, testing and maintenance of domestic and industrial installations. It is light enough for easy one handed operation but still robust enough for use in harsh environments.
This compact meter provides accurate measurement of AC voltage to 750V, DC voltage to 1000V and AC current to 1000A. It has the same test functions you would find on a high specification multimeter making this clamp a comprehensive testing solution for electricians, maintenance and service engineers.
This has the added benefit of DC current measurement to 1000A and has a useful DC current zero function.
Specifications
| Current AC | 0.1A to 1000A (2 ranges) |
| Accuracy | 2.0% rdg + 6 dgt (≤600A) 50Hz to 60Hz
2.5% rdg + 6 dgt (>600A) 50Hz to 60Hz |
| Current DC | 100mA to 1000A |
| Accuracy | 2.0% + 5 dgt (≤600A)
3.0% + 5 dgt (>600A) |
| Voltage AC | 0.1mV to 750V, autoranging (50Hz to 500Hz) (5 ranges) |
| Accuracy | 1.5% rdg + 5 dgt |
| Voltage DC | 0.1mV to 1000V autoranging (5 ranges) |
| Accuracy | 0.5% rdg + 2 dgt |
| Resistance ranges | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Resolution | 0.1Ω |
| Accuracy | 1.0% rdg + 5 dgt to 400kΩ
2.0% rdg + 5 dgt on 4MΩ 3.5% rdg + 5 dgt on 40MΩ |
| Frequency | 0.001 kHz to 1 MHz |
| Continuity | buzz at <25Ω |
| Maximum conductor | 55mm diameter or 70 x 18mm bus bar |
| Features | Diode test |
| Dimensions | 281 x 108 x 53mm |
| Weight | 570g approx. incl battery |

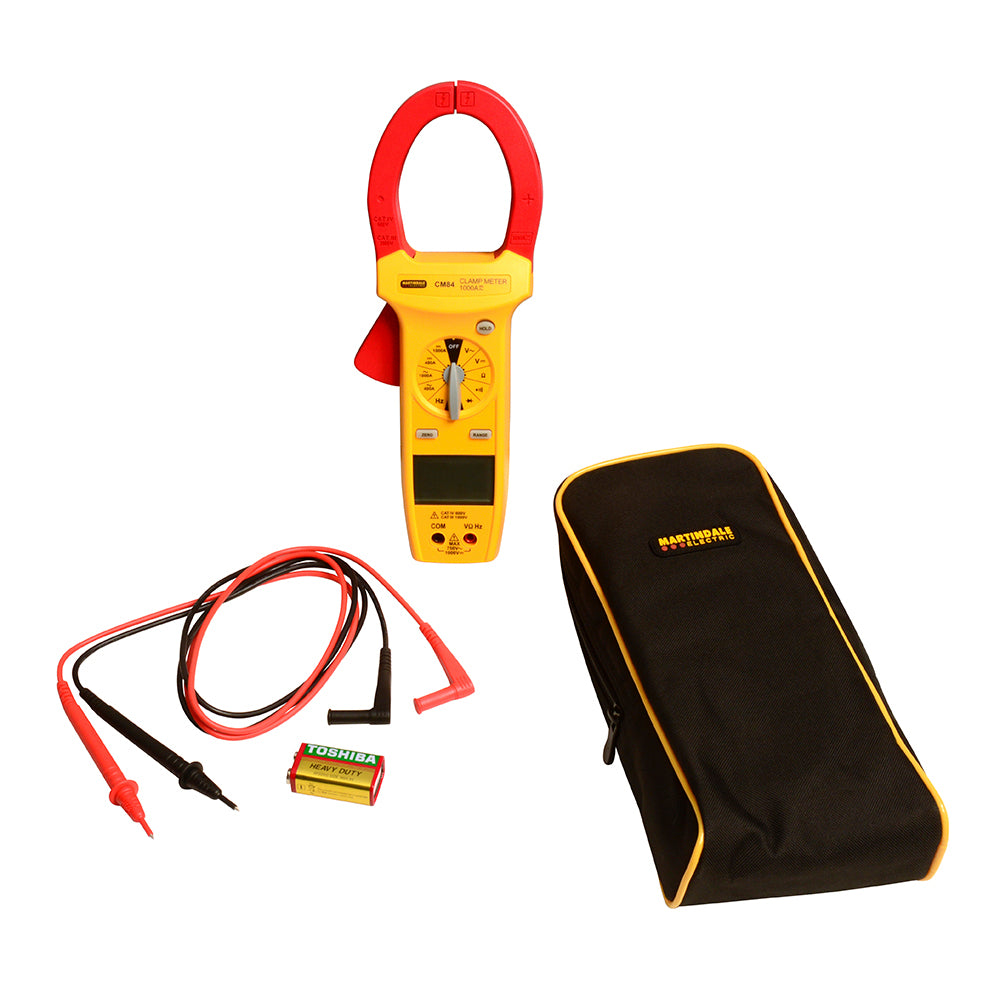

| Includes | TL16 leads, TC68 case, battery and manual |
