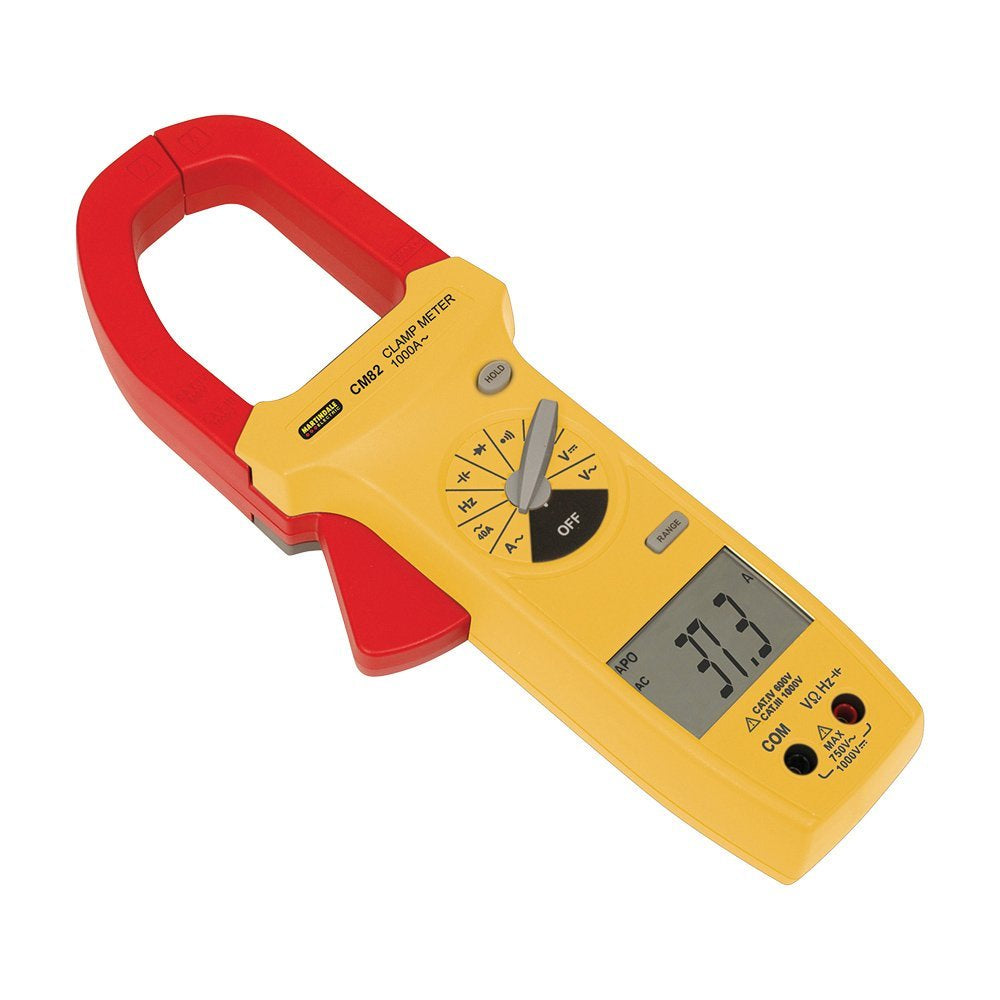

Martindale CM82 1000A AC Clamp Meter
Inc VAT: £119.93
Martindale CM82 1000A AC Clamp Meter
- AC current to 1000A
- AC voltage to 750V, DC voltage to 1000V
- Resistance to 40MΩ
- Capacitance
- Continuity with audible indication
- Frequency, diode test, auto power off
- Display hold, auto or manual ranging.
Description
The CM82 is a high specification 1000A clamp meter, packed full of functions for the installation, testing and maintenance of domestic and industrial installations. It is light enough for easy one handed operation but still robust enough for use in harsh environments.
This compact meter provides accurate measurement of AC voltage to 750V, DC voltage to 1000V and AC current to 1000A. It has the same test functions you would find on a high specification multimeter making this clamp a comprehensive testing solution for electricians, maintenance and service engineers.
Specifications
| Current AC | 0.01A to 1000A (3 ranges) (50Hz to 400Hz) |
| Accuracy | 2.0% rdg + 6 dgt (≤600A) 50Hz to 60Hz
2.5% rdg + 6 dgt (>600A) 50Hz to 60Hz |
| Voltage AC | 0.1mV to 750V, autoranging (50Hz to 500Hz) (5 ranges) |
| Accuracy | 1.5% rdg + 5 dgt |
| Voltage DC | 0.1mV to 1000V autoranging (5 ranges) |
| Accuracy | 0.5% rdg + 2 dgt |
| Resistance ranges | 400Ω, 4 kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Resolution | 0.1 Ω on 400Ω |
| Accuracy | 1.0% rdg + 5 dgt 400Ω to 400kΩ
2.0% rdg + 5 dgt on 4MΩ 3.5% rdg + 5 dgt on 40MΩ |
| Capacitance | 4nF to 4mF (7 ranges) |
| Frequency | 0.001 kHz to 1 MHz (4 ranges) |
| Continuity | Buzz at <25Ω |
| Maximum conductor | 50mm diameter or 70 x 18mm bus bar |
| Features | Diode test |
| Dimensions | 279 x 103 x 53mm |
| Weight | 515g incl battery approx. |

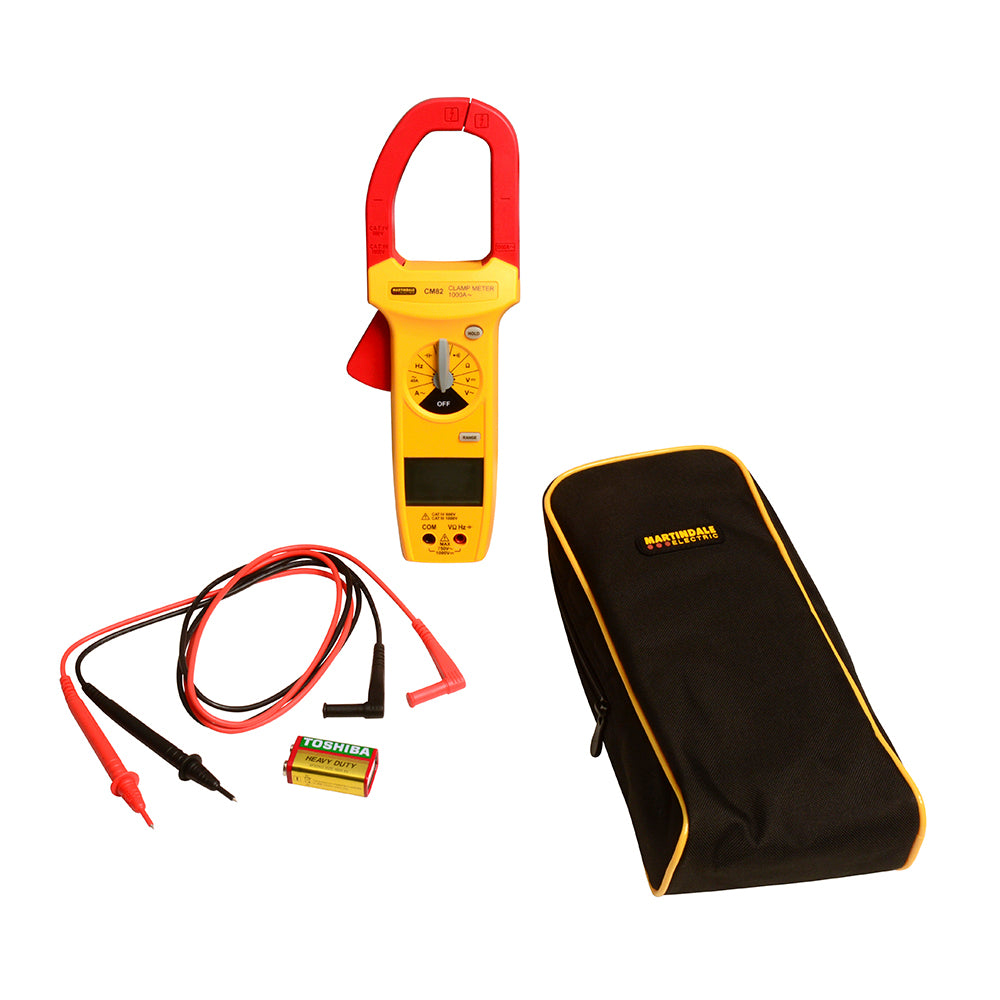

| Includes | TL16 leads, TC68 case, battery and manual |
