Martindale CD1000 Cable Detector Kit
Inc VAT: £339.85
Martindale CD1000 Cable Detector Kit
- Tracing cables and metal poles in walls and underground
- Identifies breaks in cables
- Locates fuses/breakers on live or dead circuits
Description
The Martindale CD1000 is a professional general purpose Cable Detector. It is ideal for tracing cables in walls and underground, locating fuses/breakers on live or dead circuits and locating interruptions and open-circuits in cables and electrical floor heating systems. It can also be used for tracing metallic water and heating pipes.
Using advanced digital circuit technology the Transmitter sends, to the target cable, an AC voltage modulated by digital signals which generate an alternating electric field. The alternating field is detected by the receiver sensor head, magnified and decoded. By localising the maximum signal strength detected, the path of a cable can be traced, a fuse can be found or a break in a cable/conductor.

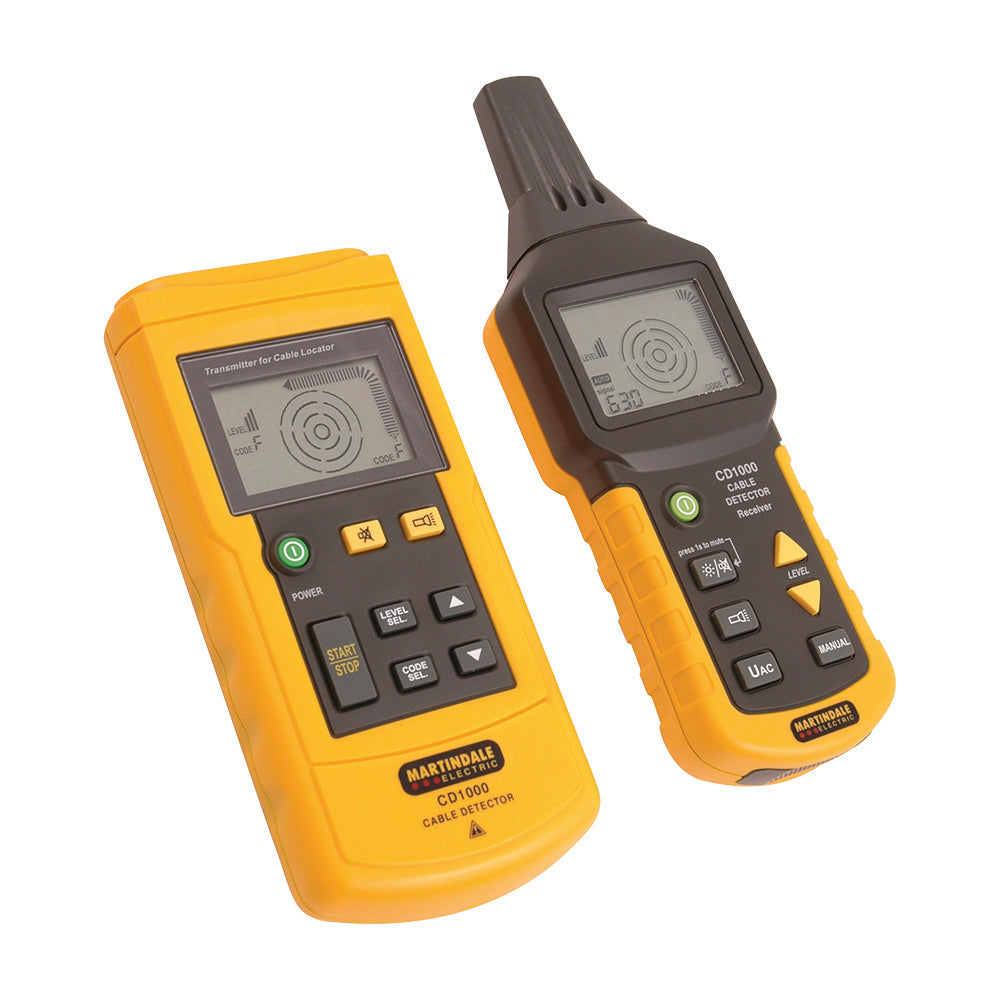

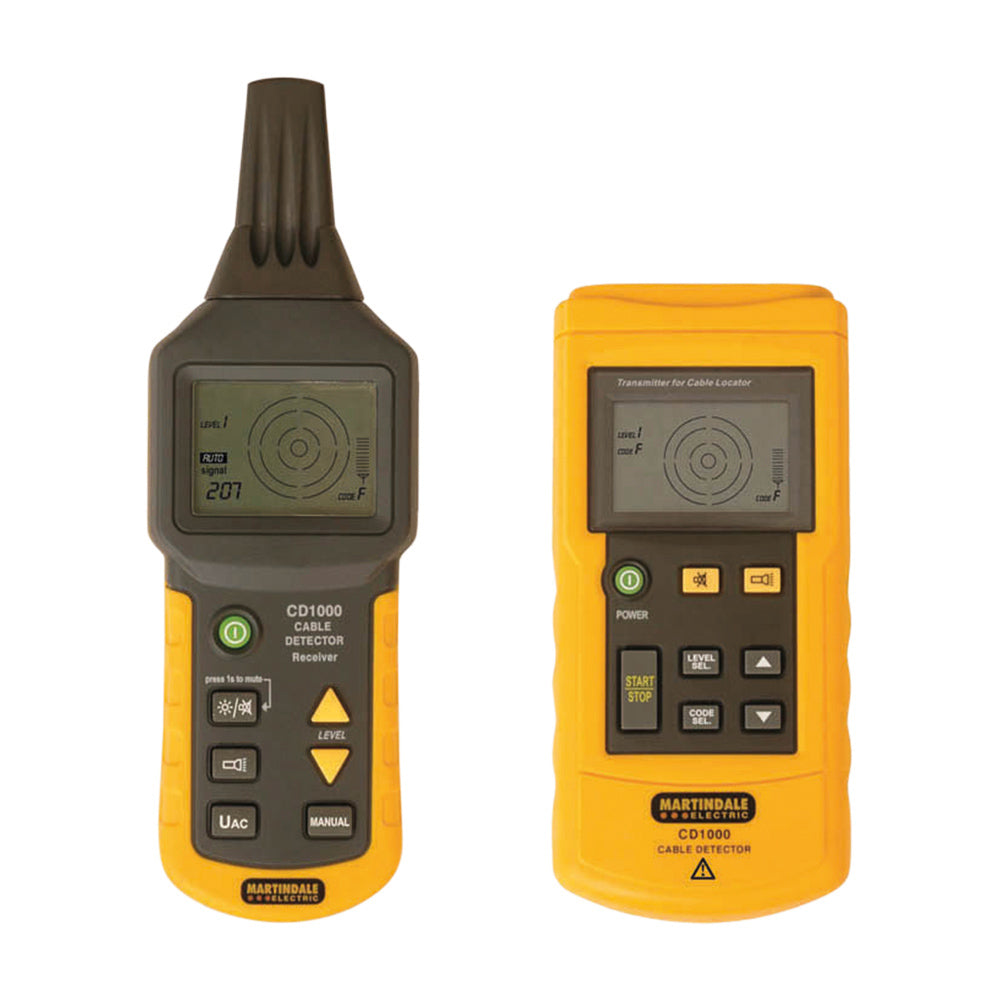

The unit is supplied as a complete kit comprising of a Transmitter and Receiver in a case, set of test leads with crocodile clips, earthing rod, batteries and instructions.
- For all applications (live or dead cables) without additional instruments
- Proven digitally coded sender signal guarantees clear signal identification

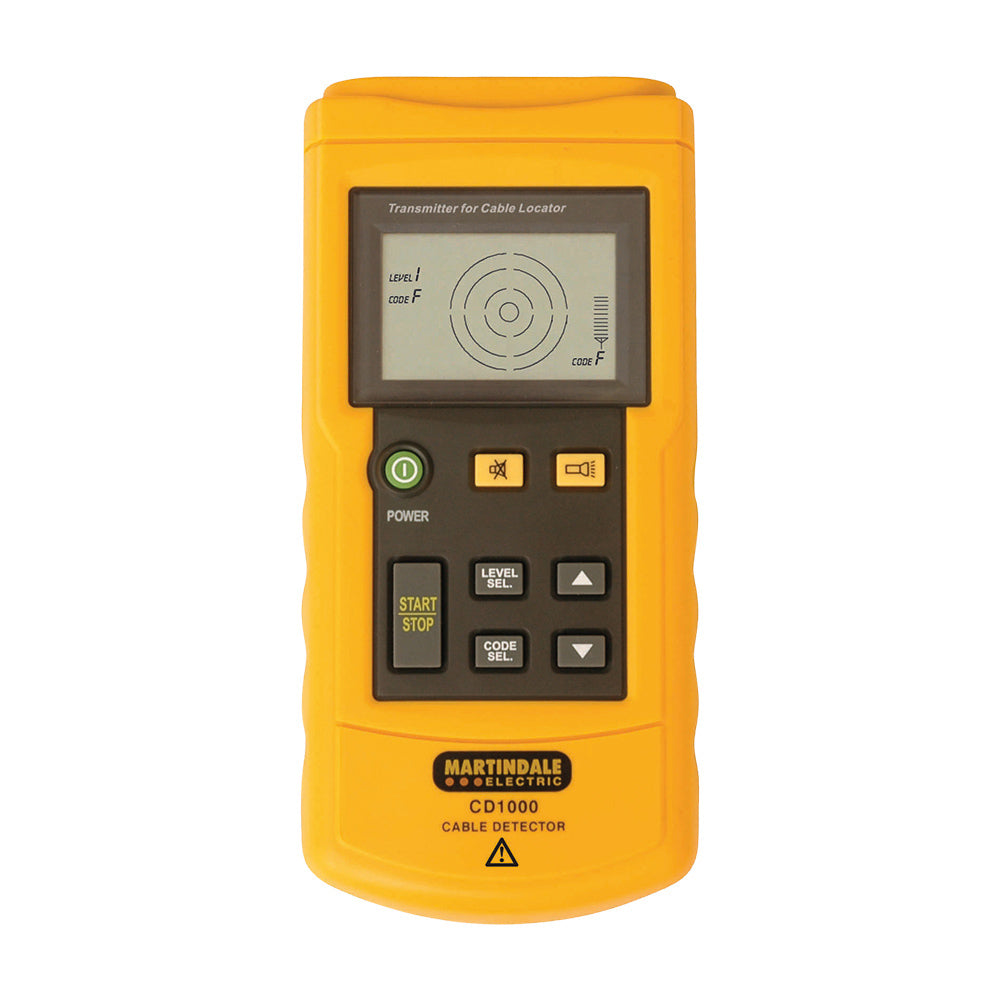

- Transmitter with LCD display for transmitting level, transmitting code

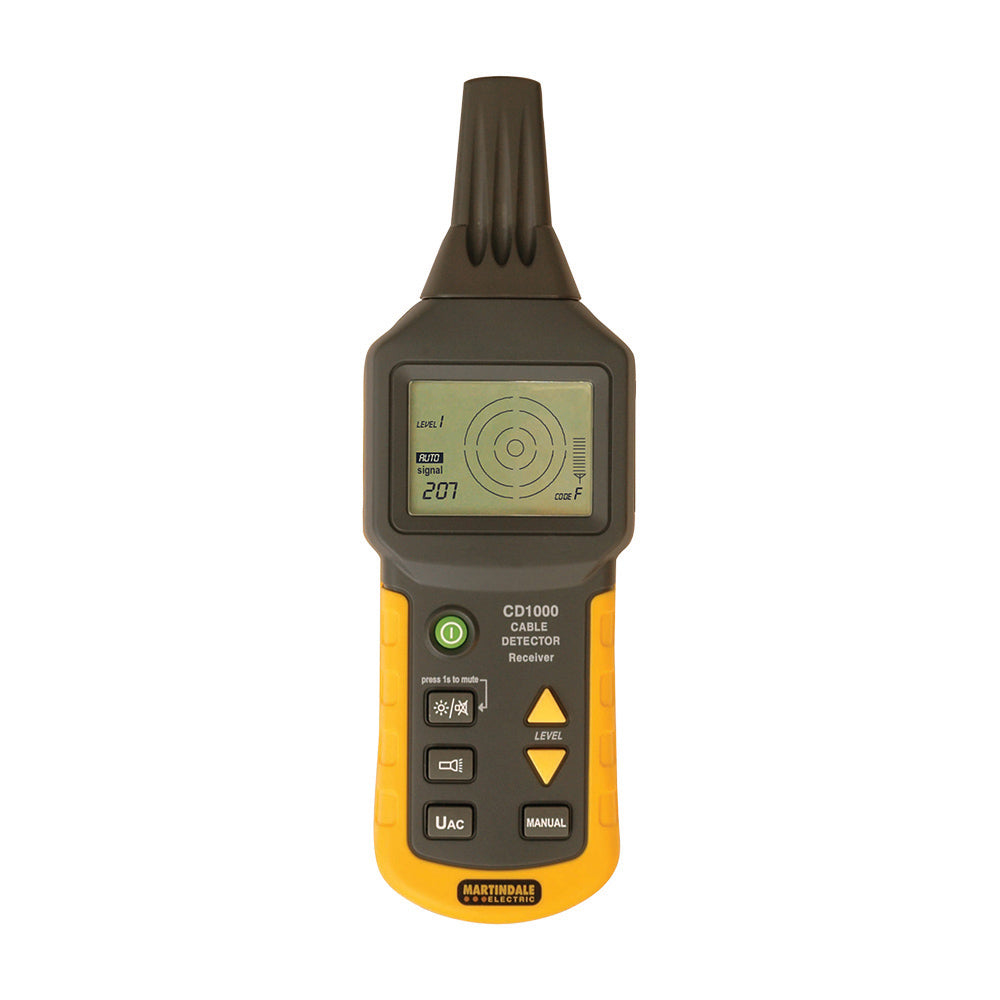

- Receiver with a backlight LCD display for level of receiving signal, code of receiving signal and live voltage indication
- Automatic or manual adjustment of receiving signal sensitivity
- Mute function
- Auto power off
- Additional torch lamp for working in dark environments
- Additional transmitters can be used for multiple users
Specifications
| Transmitter | |
| Output carrier signal frequency | 125 kHz |
| Voltmeter function | Range: 12V to 400V DC & AC rms (50Hz to 60Hz)
Accuracy:± 2.5% Maximum input voltage 400V DC or AC RMS |
| Receiver | |
| Tracking Depth | Single pole mode: 2m
Dual pole mode: 0.5m Single loop line: 2.5m |
| UAC mode | 0.4m |
| General specifications | |
| Temperature & Humidity | Operating: 0°C to 40°C max 80% RH (non condensing)
Storage: -20°C to 60°C max 80% RH (non condensing) Altitude: up to 2000m |
| Supply | Transmitter: Single 9V IEC 6LR61 battery
Receiver: 6 x 1.5V AAA, IEC LR03 batteries |
| Current consumption | Transmitter: 31mA approx. min, 115mA approx. max
Receiver: 32mA approx. min, 89mA approx. max |
| Auto off time | 10 minutes approx. (receiver only) |
| Complies with | Transmitter: BS EN 61010-1, CAT III 300V, Class II Double Insulation
Receiver: BS EN 61010-1, CAT III 600V, Class II Double Insulation Test leads: BS EN |
| EMC | Conforms to BS EN 61326-1 |
| Weight | Transmitter: 360g excl batteries, 420g incl batteries
Receiver: 280g excl batteries, 350g incl batteries |
| Dimensions | Transmitter: 190 x 89 x 42.5mm
Receiver: 241.5 x 78 x 38.5mm |
| Includes | Carry case, TL47 test leads (with crocodile clips), earthing rod, 9V alkaline battery, 1.5V alkaline battery x 6 and manual |
