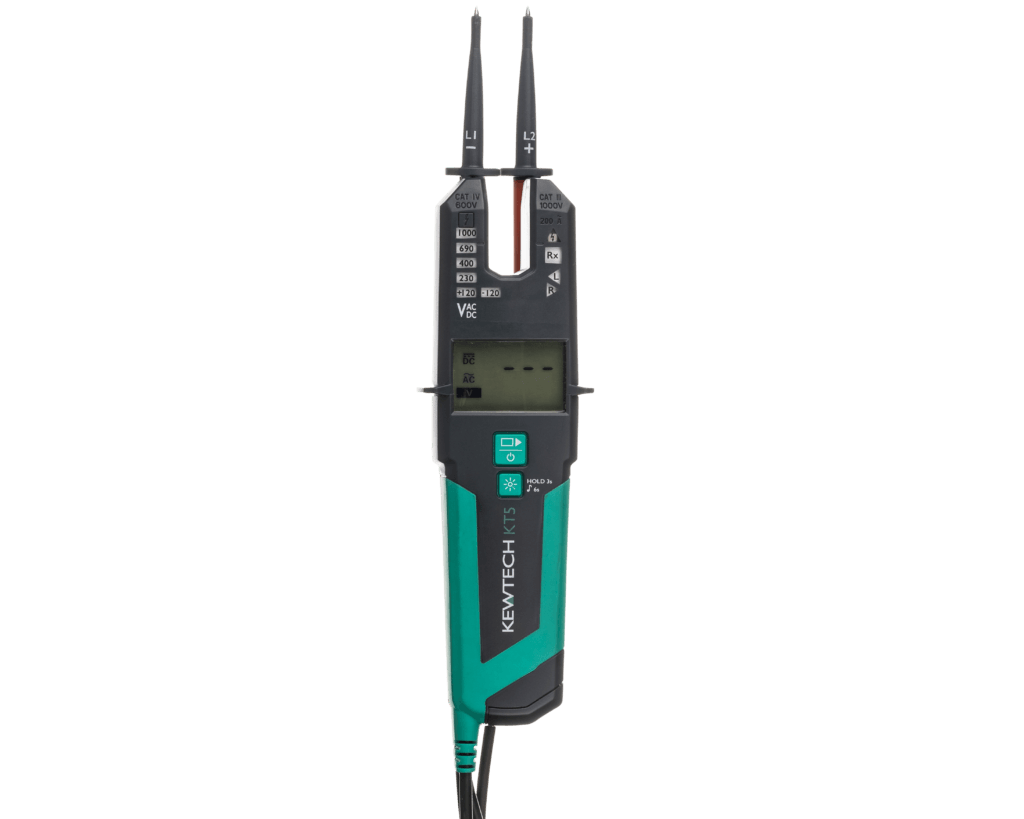

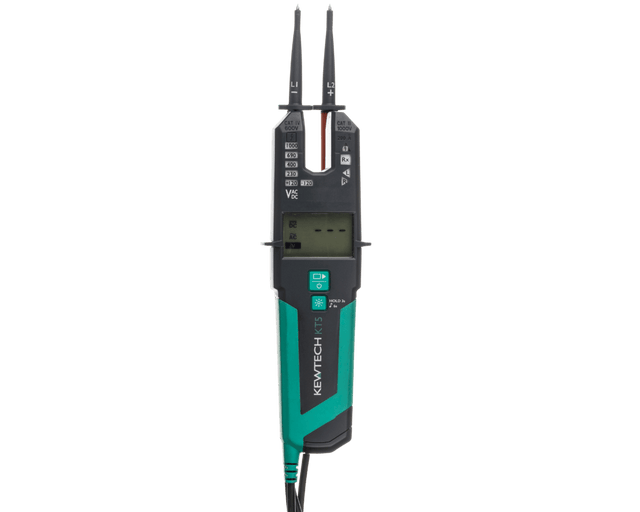

Kewtech KT5 Open Jaw Current & Voltage Tester

Voltage Detection:

Non contact, single pole and two pole voltage detection.

• Non contact voltage test – the first line voltage indication when approaching metal cabinets.
• Single pole voltage detection on either probe for added safety and removes the ambiguity of non contact methods

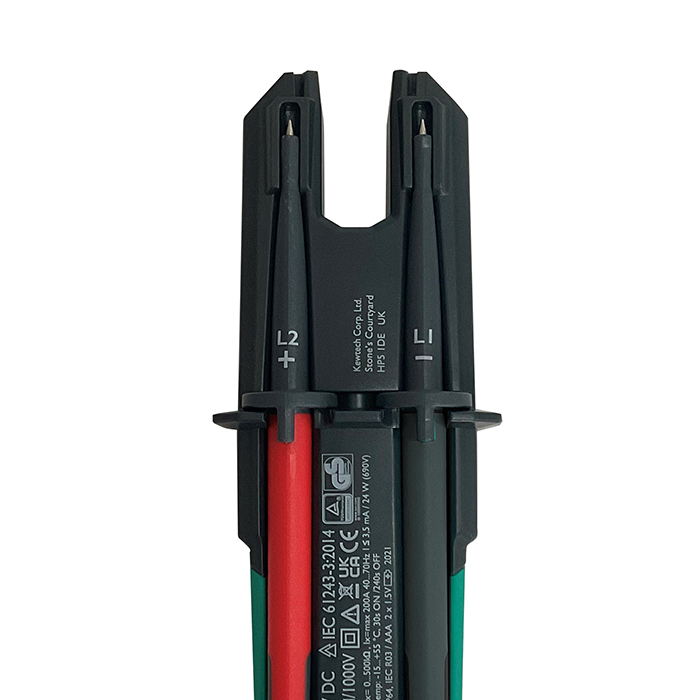

• Two pole voltage detection with permanent GS38 probe tips. This means there are no covers to lose or restrict you in deep reach terminals typically found on devices such RCBOs

The NCV function has three sensitivity levels which give you ability to trace hidden cables.

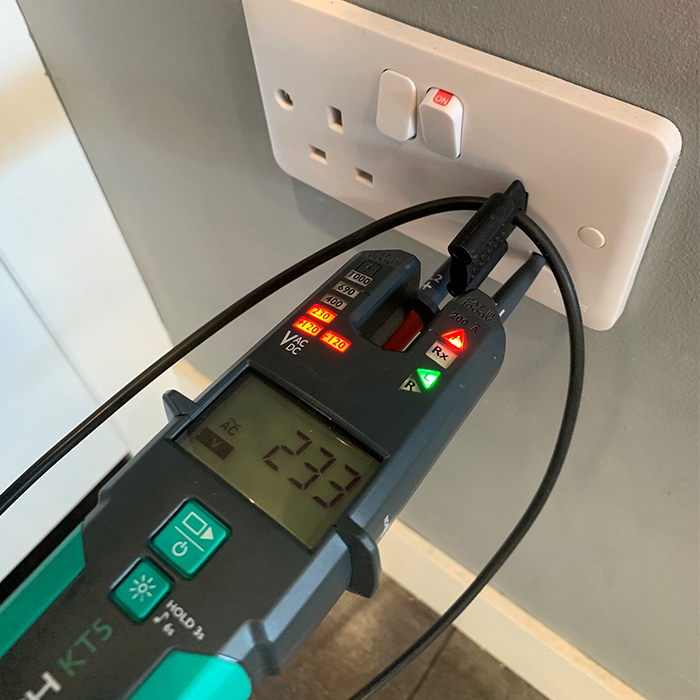

Probe tip cover with nose to depress the earth pin in traditional UK BS1363 socket outlets.

KEY BENEFITS

• Probe tip cover with nose to depress the earth pin in traditional UK BS1363 socket outlets
• Enables detection of open PEN situations
• The probes can be captive allowing for tradition two usage model
• IP64
• Standards: BSEN 61243 & BSEN 61010 CAT IV 600V

KEY FEATURES

• 200A AC measurement
• 1000V AC measurement
• 1500V DC measurement
• Non contact voltage test with three sensitivity levels
• Single pole voltage detection on either probe
• Two pole voltage detection
• LCD display with backlight switch
• Measurement hold feature
• DMM functions includes diode test, frequency
• Continuity with adjustable threshold for buzzer
• Phase rotation
• Resistance and continuity with buzzer
• Bright pen torch
