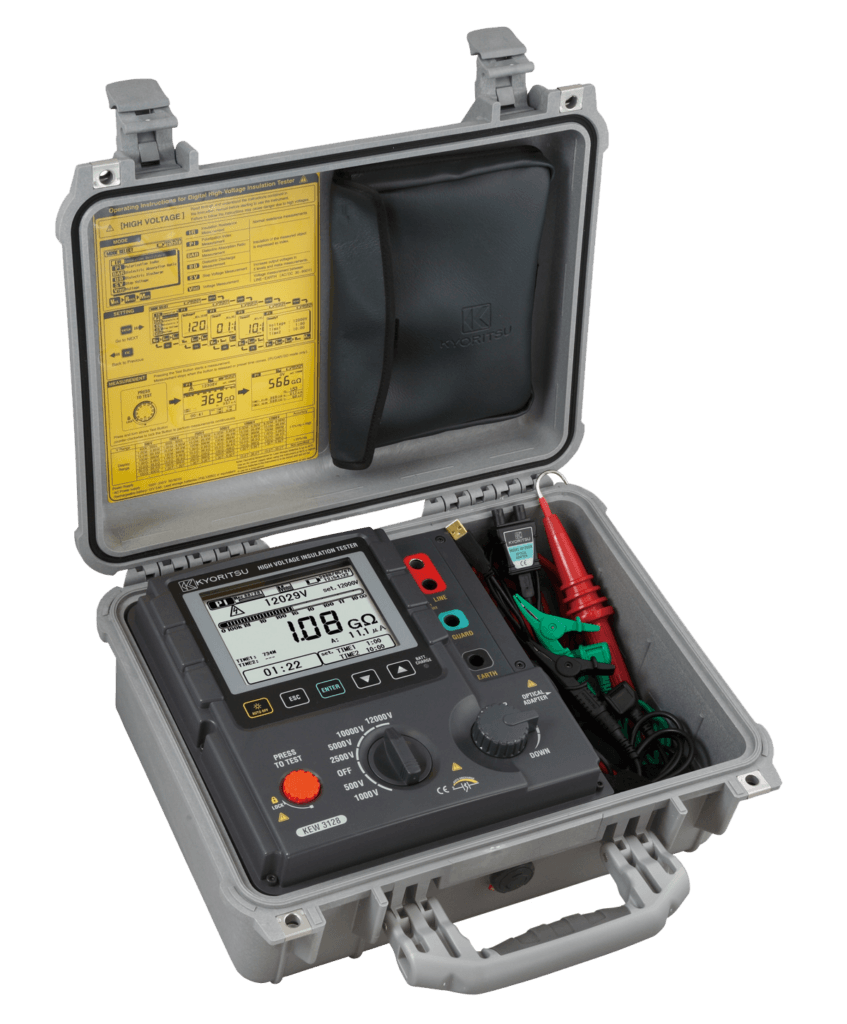

Kewtech KEW3128 12kV Insulation Resistance Tester

Suitable for analyzing the insulation characteristics of cables, transformers, motors, generators, high-pressure switches, insulators, wiring installations, etc.

KEY BENEFITS

• High current for fast testing even with large capacitive circuits
• Measures insulation resistance up to 35TΩ and has large graphic display
• Memory and logging functions comes with dedicated application software
• Filter function and capacitance and leakage measurements
• Polarisation Index, Dielectric discharge, Dielectric Absorption, Step voltage measurement

KEY FEATURES

• Test voltage: 500V, 1000V, 2500V, 5000V, 10000V & 12000V
• 5mA short circuit test current
• Fine adjustment of voltage setting at each range is also possible
• Graphic representation of the insulation resistance and leakage current versus time on large display with bar graph and backlight
• Can be operated from built-in rechargeable battery or from AC line
• Automatic discharge after test with monitoring of the discharge voltage
• Print screen function enables to record up to 32 display screens
• Internal memory can store about 40,000 data
• Robust design for field use with IP64 rating (with lid closed)
