IGE | SKU:
13

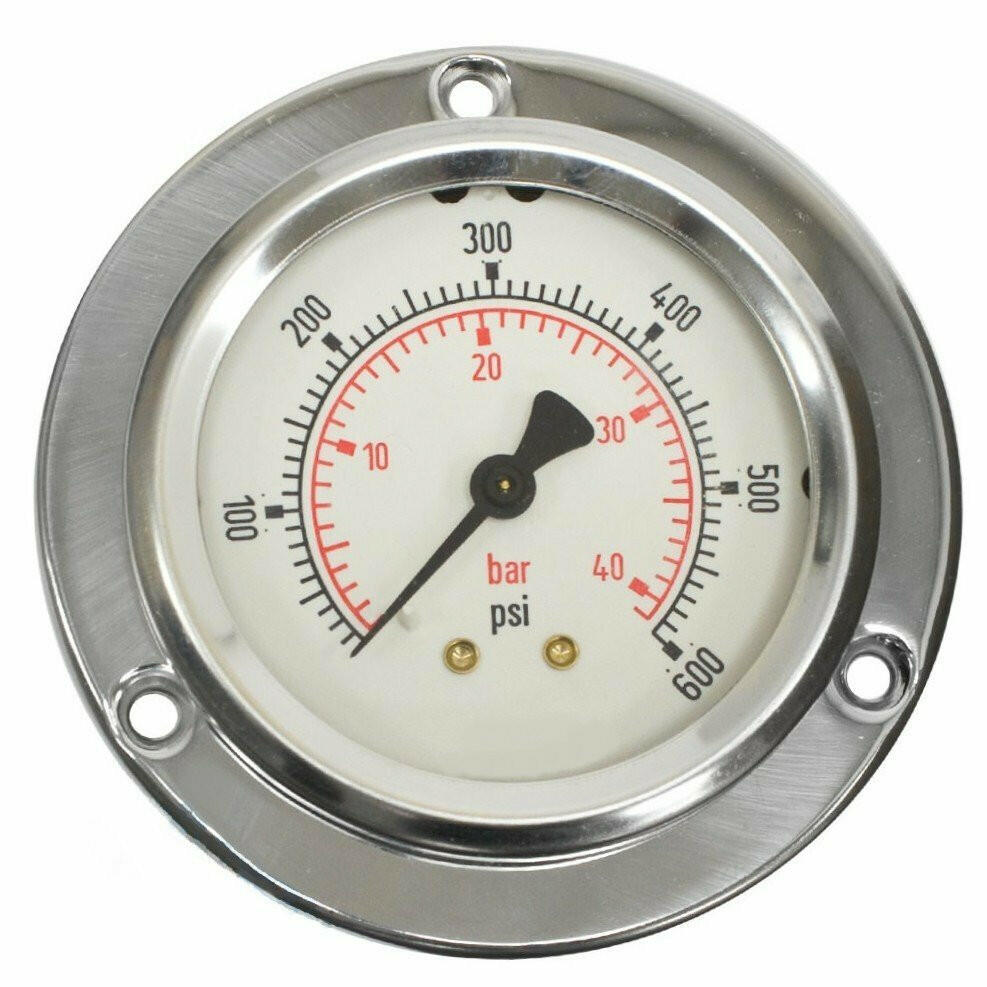

100mm Pressure Gauge ½ NPT(M) 3 Hole Front Flange, Bottom Back Entry All Stainless Steel
£90.00
Unit price
/
Unavailable
Inc VAT: £108.00
Shipping calculated at checkout.
100mm Pressure Gauge ½ NPT(M) 3 Hole Front Flange, Bottom Back Entry All Stainless Steel - 0/15 Psi & 1 Bar / None / Dry is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
- Standard Shipping: Delivery typically takes 2-4 business days.
- Continue to checkout for accurate shipping rates
100mm Pressure Gauge ½ NPT(M) 3 Hole Front Flange, Bottom Back E...
From
£90.00
Unit price
/
Unavailable
Inc VAT: £108.00
100mm All-Stainless Steel Pressure Gauge with ½ NPT(M) Process Thread and 3-Hole Front Flange, featuring Bottom Back Entry. Customizable pressure range, filling, and certification options available.
-
100mm (4 inch) Dial
-
Accuracy: Class 1.0 (EN837-1)
-
½ inch NPT Process Connection
-
Durable Stainless Steel Construction
-
Optional Glycerine Filling
-
316 Stainless Steel Wetted Components
-
Traceable Calibration Offered
-
Aluminium Dial with Black Numerals on a White Background
-
Black Painted Aluminium Pointer
-
Safety Blowout Points at the Back & Top
-
Dual Unit of Scale: PSI & Bar
-
Laminated Safety Glass Window
-
Protection Rating: IP 65
This premium-quality 100mm pressure gauge utilizes bourdon tube technology to provide precise pressure measurements.
Designed with rugged stainless steel, this gauge is ideal for various general process industry applications.
Manufactured in compliance with EN837-1 European standards.
For installations involving vibration, the optional liquid filling is recommended for enhanced performance.
