IGE  |  SKU: 2

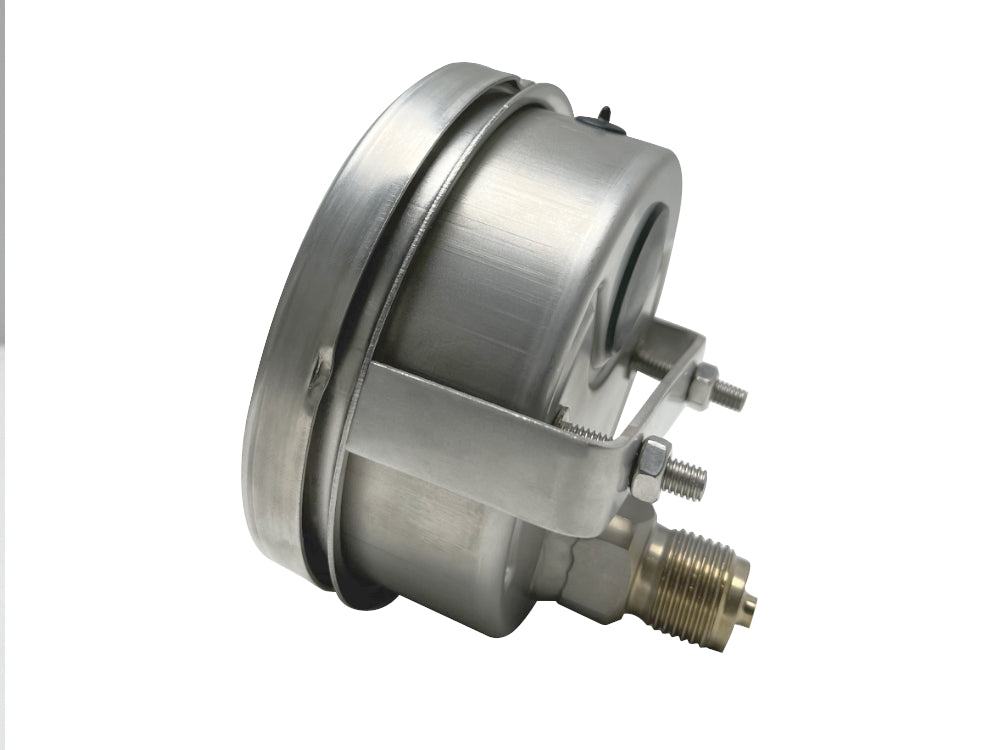

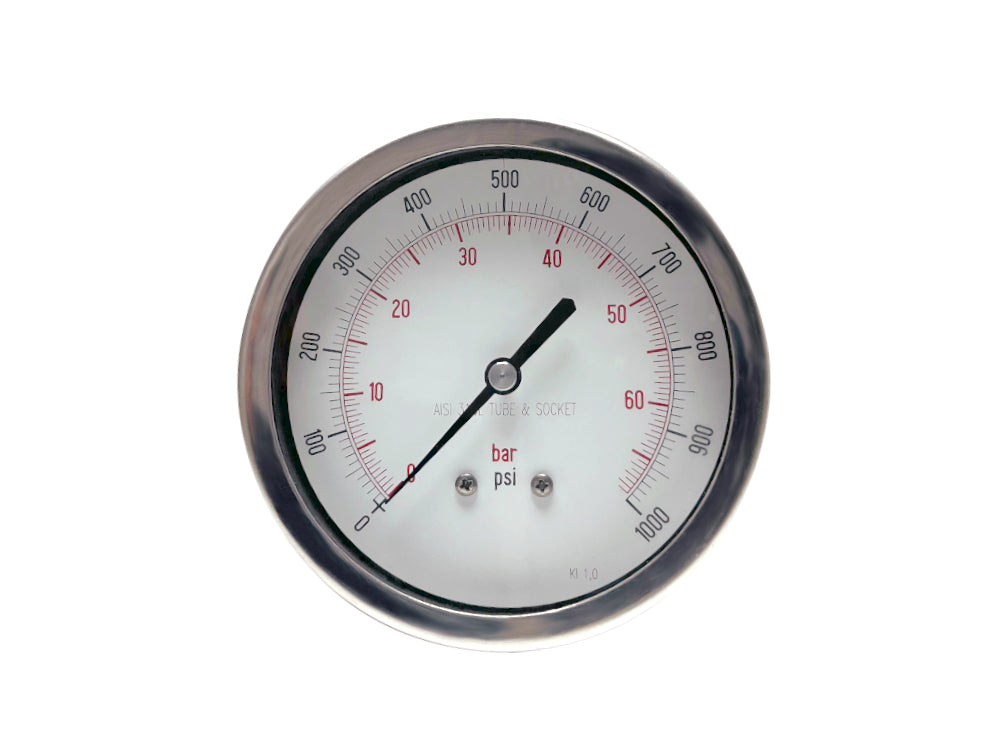

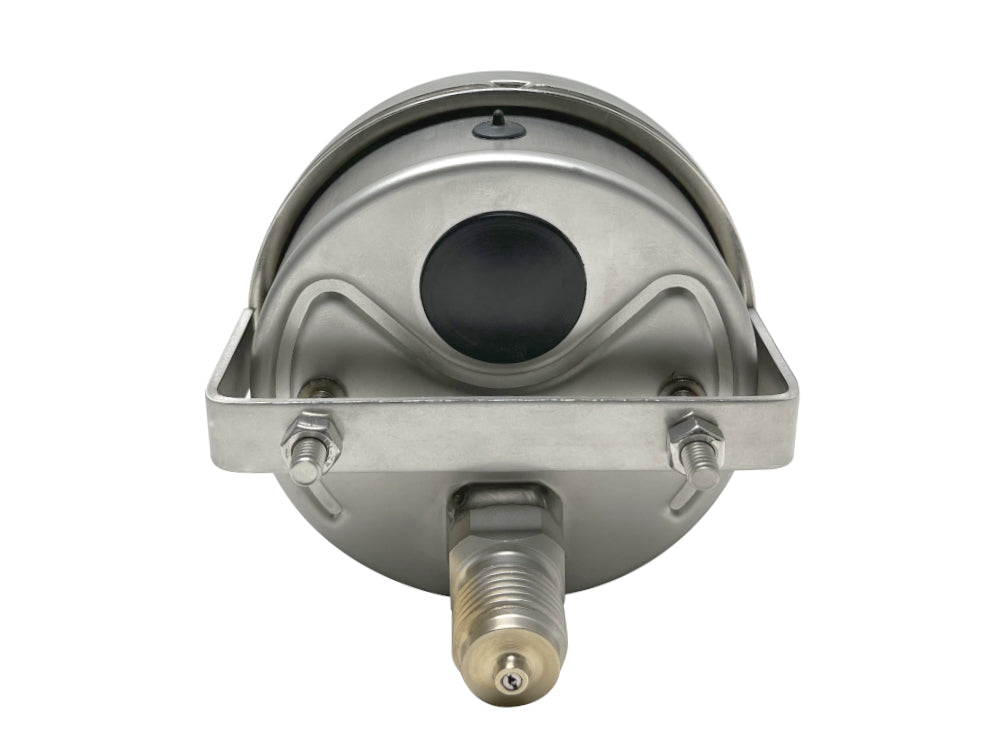

100mm Pressure Gauge ½ BSPT (M) Panel Mounted Clamp Fixing All Stainless Steel

£90.00

Inc VAT: £108.00

Shipping calculated at checkout.

Delivery and Shipping

- Standard Shipping: Delivery typically takes 2-4 business days.

- Continue to checkout for accurate shipping rates

Share with your team, or Save page as a bookmark

100mm All Stainless Steel Pressure Gauge, ½ BSPT(M) Bottom Back Entry Pressure Gauge with Choice of Range, Filling and Certification Options


  • 100mm (4 inch) Dial
  • Accuracy Class 1.0 (EN837-1)
  • ½ BSPT Process Thread
  • All Stainless Steel Construction
  • Optional Glycerine filled
  • 316SS Wetted Parts
  • Traceable Calibration Available.
  • Aluminium Dial, Black Numerals on White Background
  • Aluminium Pointer , Black Painted
  • Back & Top Blowout Points
  • Unit of Scale: PSI & Bar
  • Window: Laminated safety glass
  • Case Protection: IP 65


This high quality 100mm pressure gauge uses bourdon tube technology to measure pressure.


The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.


All gauges are manufactured in accordance with the requirements of the EN837-1 European standard.


For applications where you may have vibration we would recommend the optional liquid filling.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

100mm Pressure Gauge ½ BSPT (M) Panel Mounted Clamp Fixing All Stainless Steel : Calibration Options Available
IGE

100mm Pressure Gauge ½ BSPT (M) Panel Mounted Clamp Fixing All Stainless Steel

From £90.00

Inc VAT: £108.00

100mm All Stainless Steel Pressure Gauge, ½ BSPT(M) Bottom Back Entry Pressure Gauge with Choice of Range, Filling and Certification Options



This high quality 100mm pressure gauge uses bourdon tube technology to measure pressure.


The robust stainless steel gauge is suitable for a wide range of applications in the general process industry.


All gauges are manufactured in accordance with the requirements of the EN837-1 European standard.


For applications where you may have vibration we would recommend the optional liquid filling.

Range

  • 0/15 Psi & 1 Bar
  • 0/30 Psi & 2 Bar
  • 0/60 Psi & 4 Bar
  • 0/100 Psi & 7 Bar
  • 0/160 Psi & 11 Bar
  • 0/200 Psi & 14 Bar
  • 0/300 Psi & 20 Bar
  • 0/400 Psi & 27 Bar
  • 0/600 Psi & 40 Bar
  • 0/1000 Psi & 70 Bar
  • 0/2000 Psi & 140 Bar
  • 0/4000 Psi & 250 Bar
  • 0/6000 Psi & 400 Bar
  • 0/10000 Psi & 700 Bar

Calibration

  • None
  • Standard Traceable Calibration Certificate (+£15.00)

Filling

  • Dry
  • Glycerine Filled (+£15.00)
  • Silicone Filled (+£25.00)
